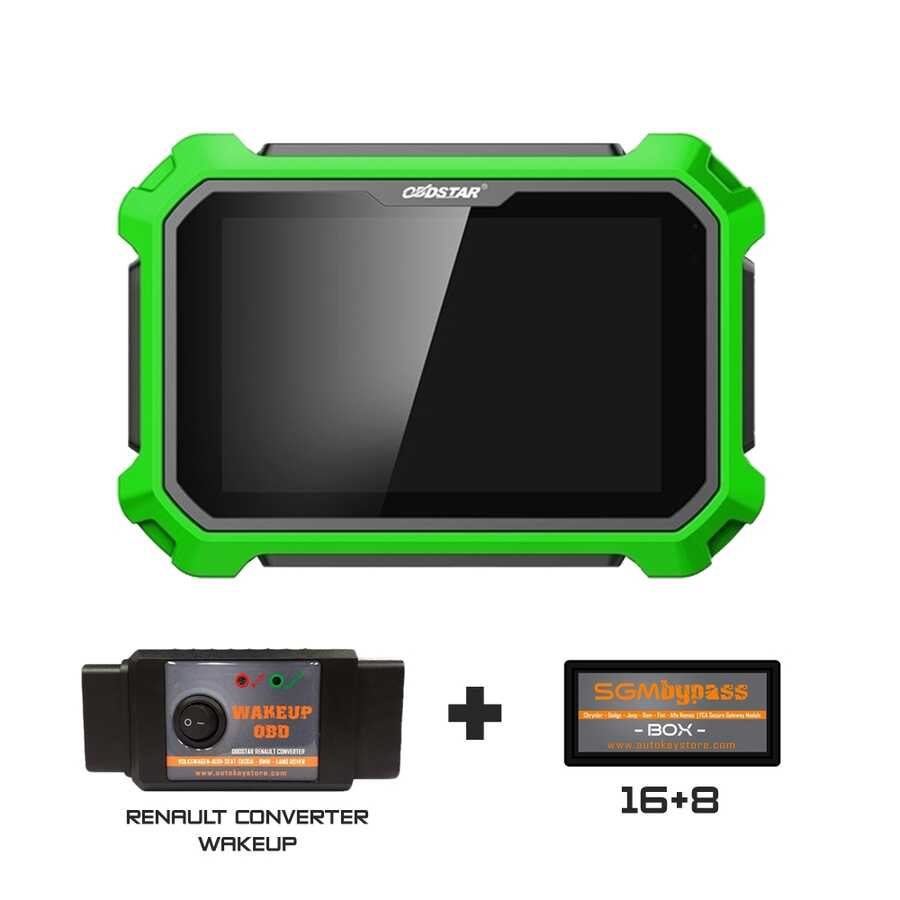

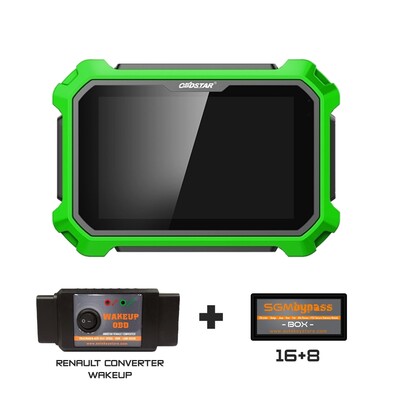

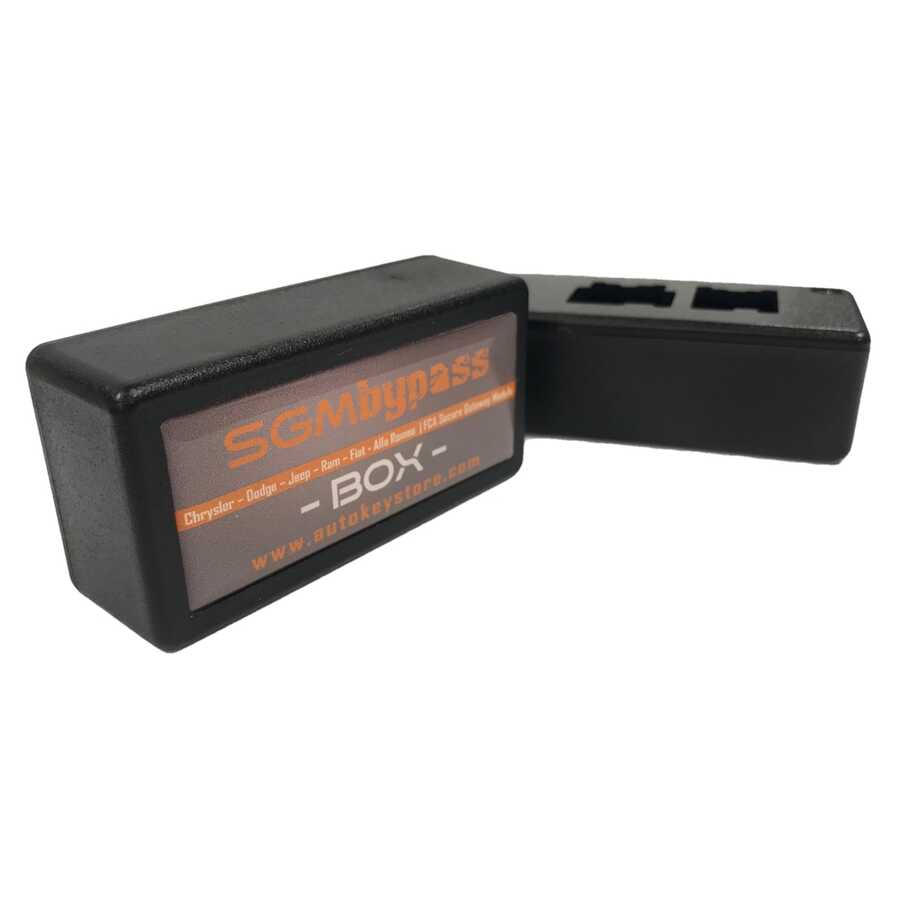

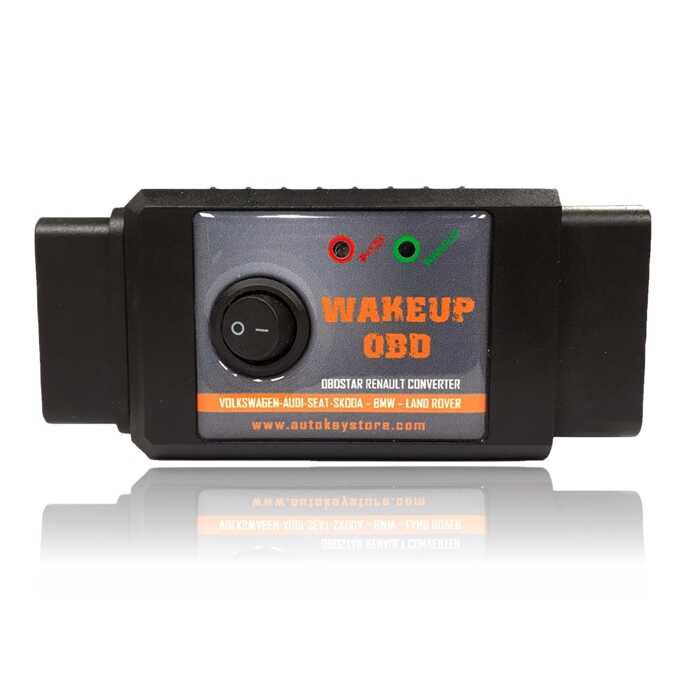

Key Master DP Plus Immobilizer A Package + Ren Converter + 16-8 (English ver.)

1. Built-in VCI box

2. 8-inch touchscreen

3. Charge directly via OBD interface

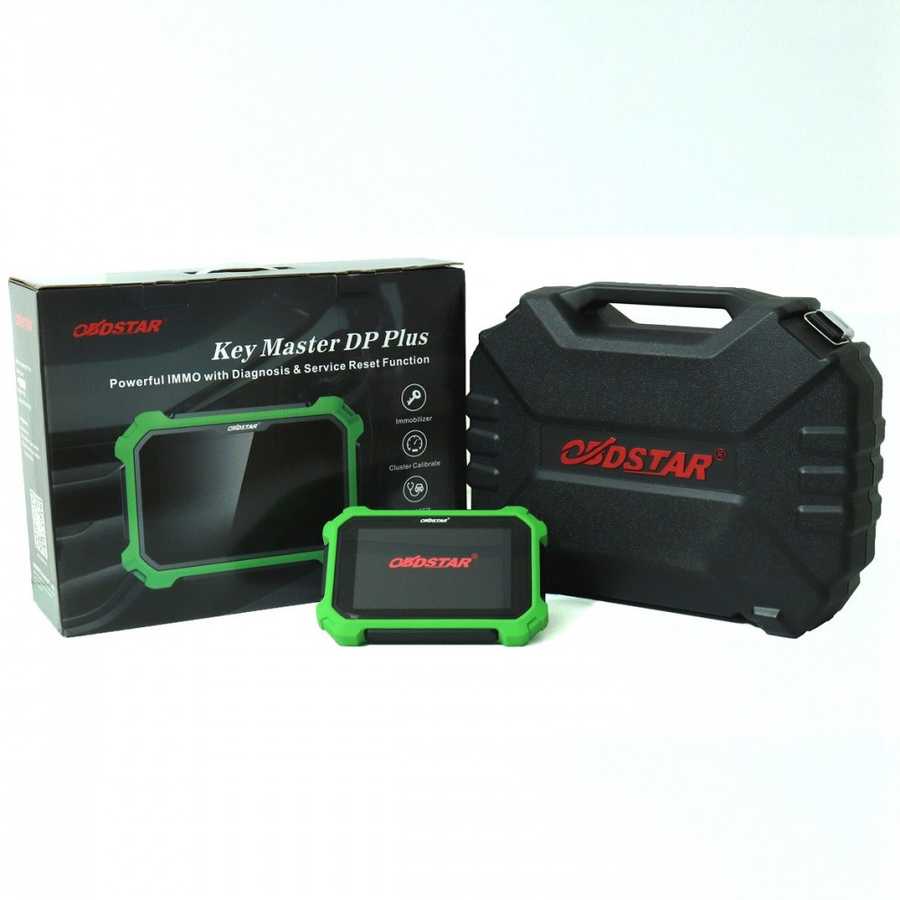

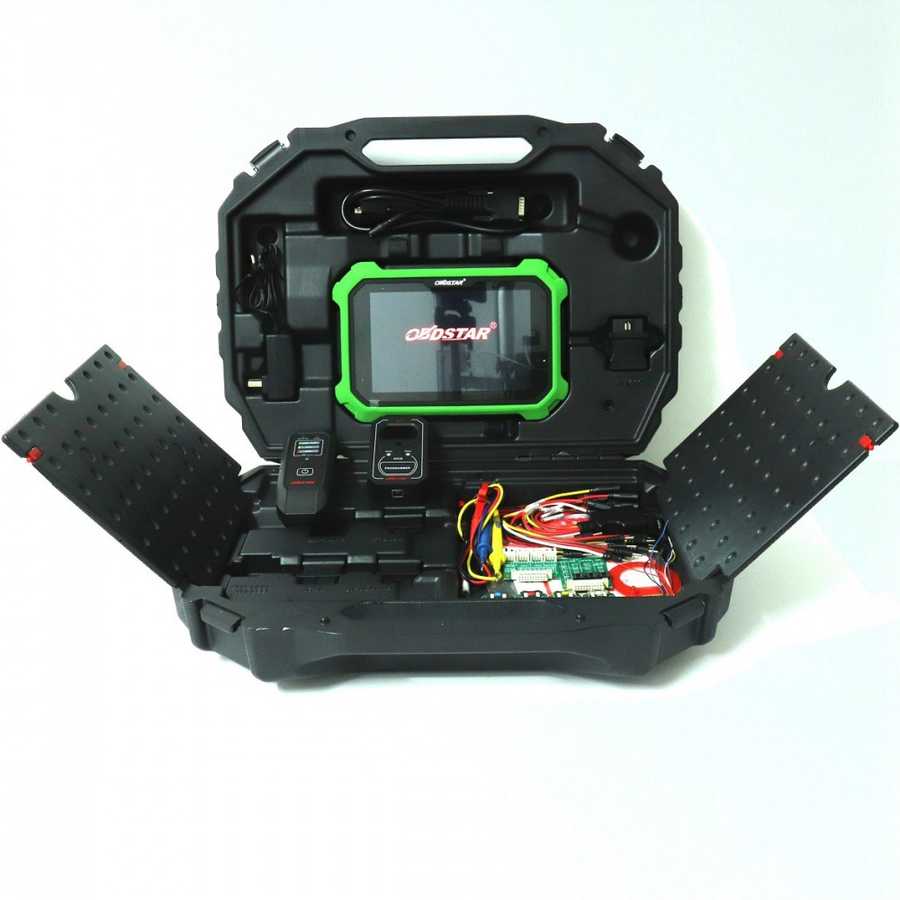

4. Practical and high-end gift box

5. Industrial design with silicone case

6. Back bracket design:prop on the steering wheel or stand on the table

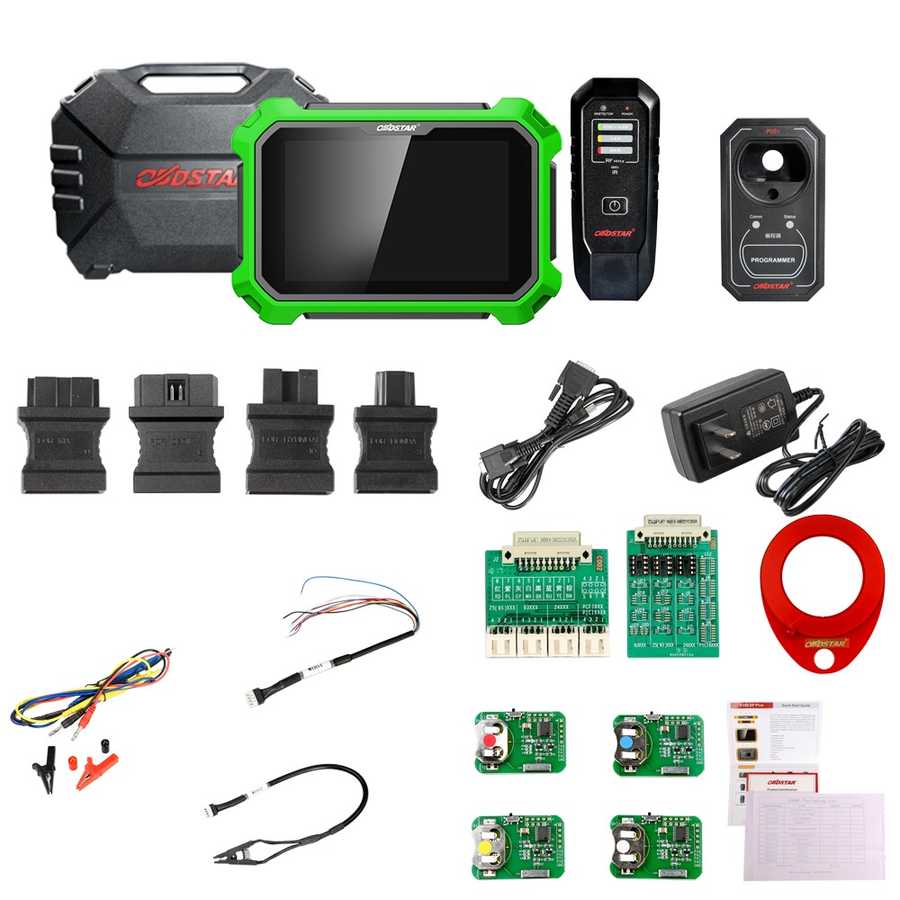

7. With Toyota simulate key 1

8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter

9. Add the clip of reading SOP 8PIN EEPROM

10. C001/C002 circuit board to read and write chip data with welding

11. IMMO induction coil to detect the key induction coil failure of the vehicle.

12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

IMMO:

1. EEPROM

2. Renew Key

3. Key programming

4. Remote programming

Cluster Calibrate: wild vehicle coverage, pls check the carlist

Diagnosis: realize all vehicle systems diagnosis

Special Functions

TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/

Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset

ECU Clone

1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:

A. Free of 4S online:

Break monopoly from 4S, benefiting automobile maintenance industry

B. Simplified operation procedures: realize foolproof operation

C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add “Help” Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.

2. Carlist and upgrade announcement, all details are available on the device

3. Customers can look up the features or uniquely support functions on the device

4.  Help notes: built-in help notes for each model or function

5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient
