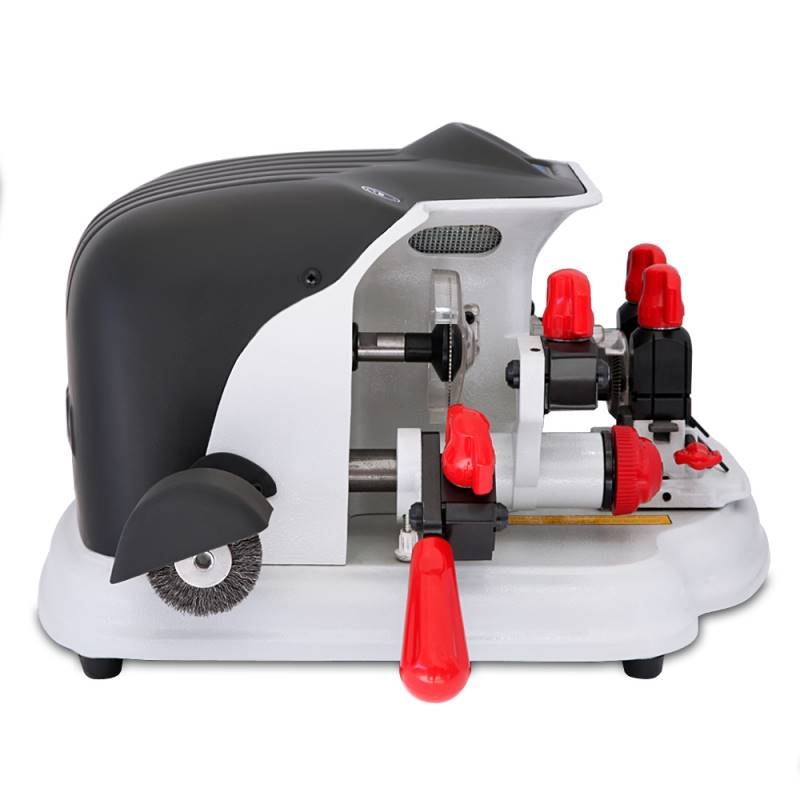

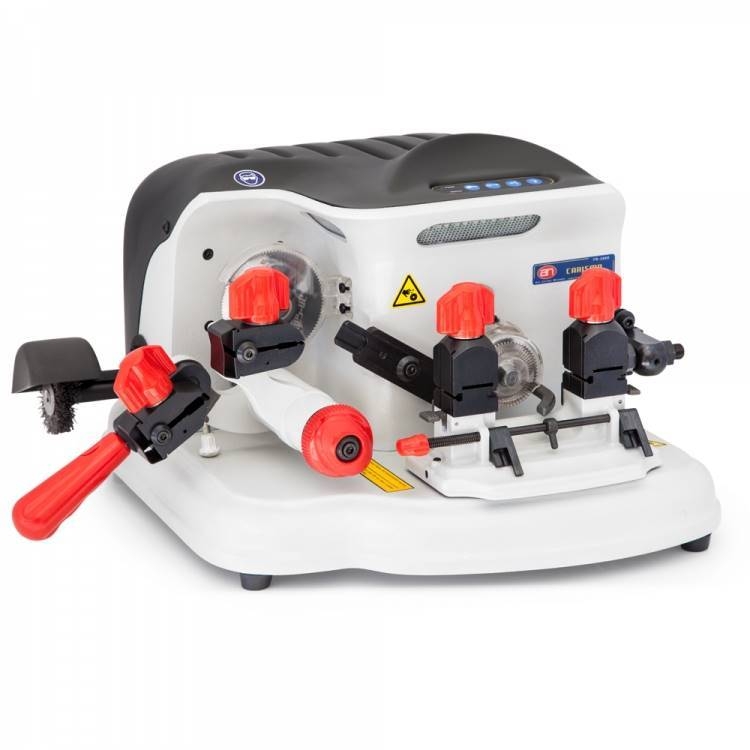

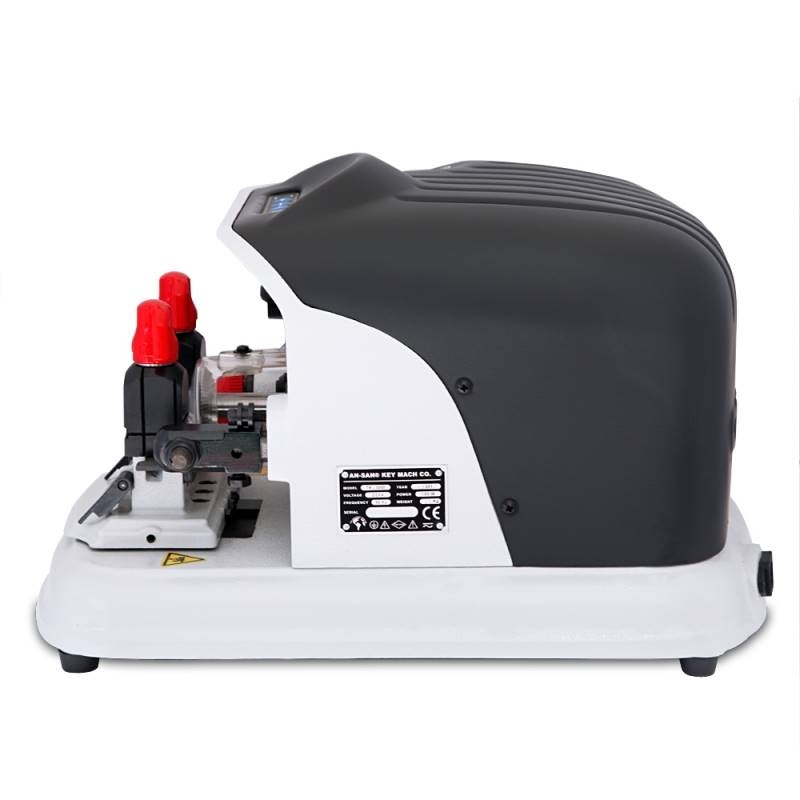

An-San Carisma Key Cutting Machine

No need to worry, you can achieve this with Carisma, which has an all-in-one feature...



TR-3000 Carisma model designed for all your copying needs in cylinder, vehicle, fiam and safe key types.



You won't believe its speed...

In systems commonly used in automatic key cutting machines, travel and return times are generally the same. This operation places unnecessary pressure on the cutting tool during cutting, resulting in both rapid dulling of the cutting tool and improper machining of the key surface. With the Speed ​​Control System, developed by Ansan's R&D team for automatic machines, travel and return speeds are individually programmed, achieving the fastest time in its class. Carisma's key cutting time is 35 seconds, and 25 seconds of this time is spent on cutting and 10 seconds on return.



100% unlocking guarantee for copied keys...

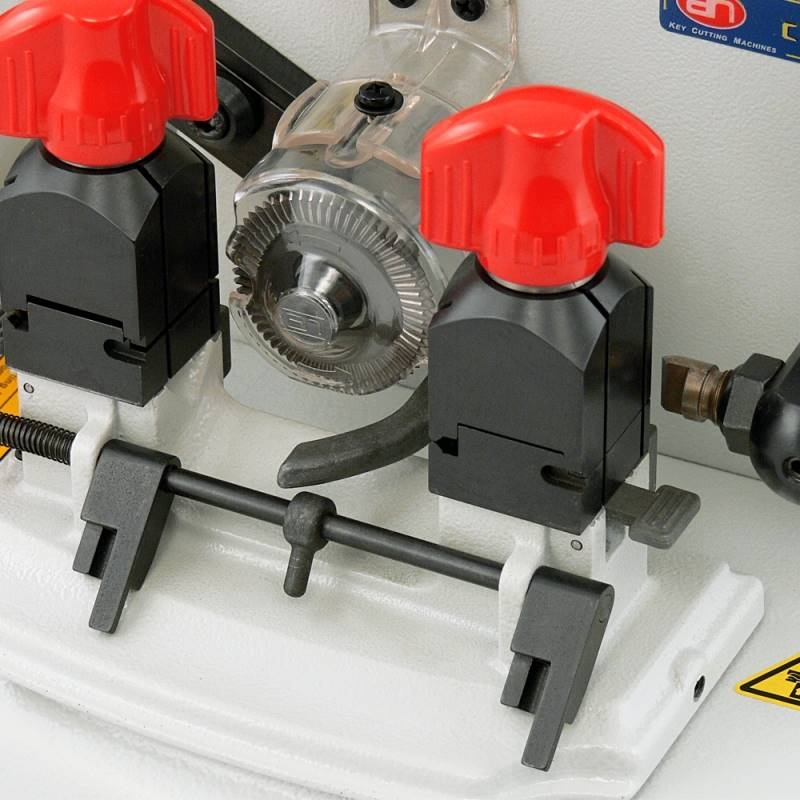

The most striking feature of the Carisma series is its linear vise system. Circular vise systems, which operate in a circular pattern, multiply the error rate by reducing the difference between low and high codes in the cylinders' codes, along with the resulting angle loss during key duplication. Thanks to this improved linear system, even if the copied key is not the original, the cutter and follower center always move at the center of the raw key and the copied key, ensuring zero error in the copied key, regardless of how many keys are made.


Don't worry about the shaft thickness of the safe keys, Carisma sets the most suitable center for you...

Because the case section clamps move independently, the tightening process always remains centered, regardless of key thickness. Furthermore, the use of a ball-bearing clamping mechanism on the clamp ensures smooth and comfortable movement.



The Electronic Control Unit is an electronic component developed by the Ansan R&D team for the machine. The microprocessor on the machine not only controls and operates all components but also records all operations performed on the machine. This ensures maximum safety against any malfunctions and provides both visual and audible notifications when various service requirements are required, such as when the cutting tool is dull or when maintenance is due.  * Its digital display provides reports on the daily, weekly, monthly, and total key-pulled amounts.


*The digital panel required to use the daily reporting tracking system is optional equipment and is sold separately.







Low wattage consumption, high and efficient power... With the newly developed engine technology, maximum power is achieved with the lowest consumption, and you can use your machine safely for many years with this new generation engine that is quiet and does not require maintenance. Ansan's R&D team, which prioritizes environmental protection in product development, has ensured that your machine is ready to use with minimal power consumption when not in use. Even when plugged in, your machine remains ready with A+ energy consumption. Environmentally friendly and comfortable lighting with specially designed LED lighting focused on the right area...

Due to the short lifespan and maintenance periods of mechanical buttons, alternative control systems are needed today. The most commonly used system among these is membrane buttons, which are designed to allow you to control your machine safely for years and are placed in an ergonomic position on the machine.
