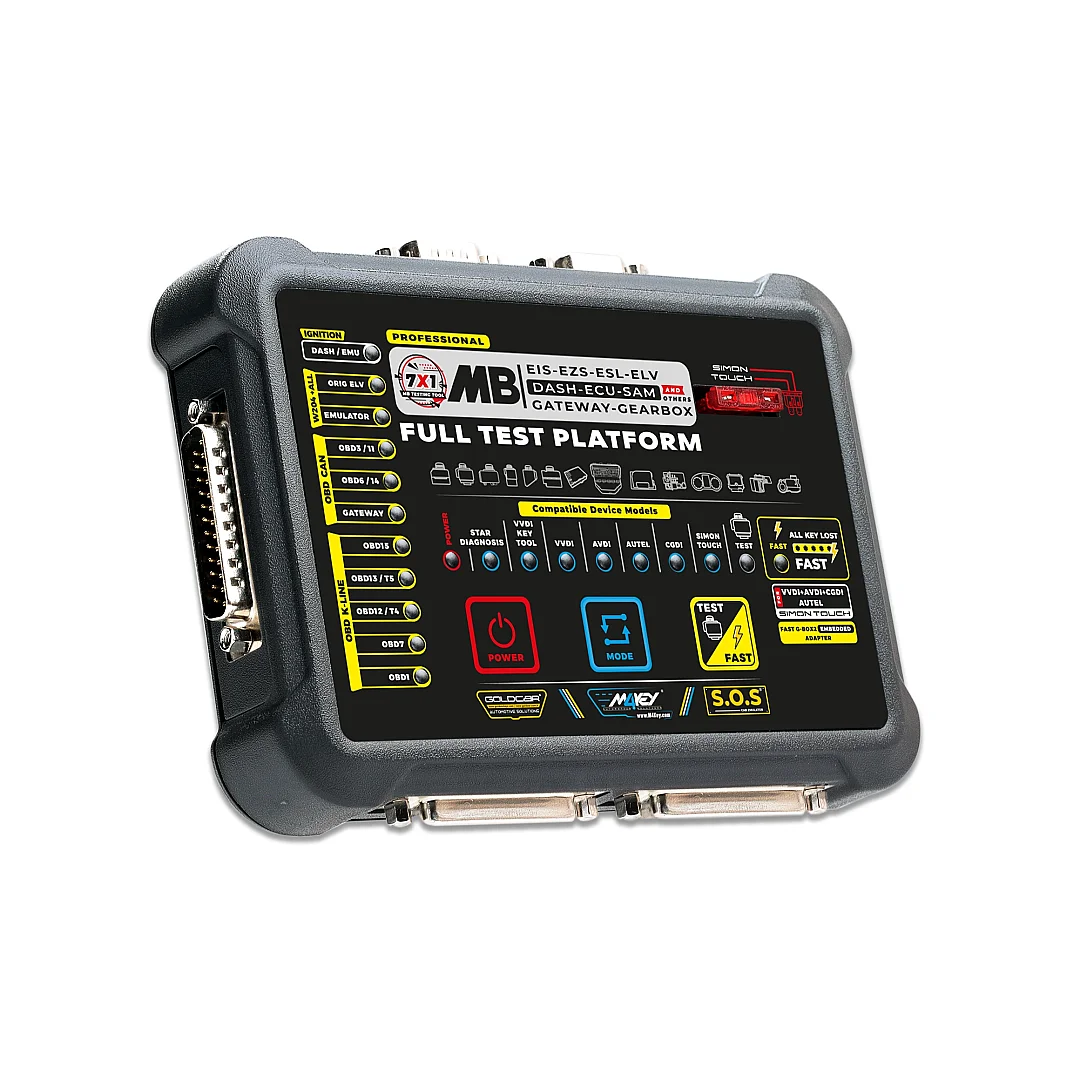

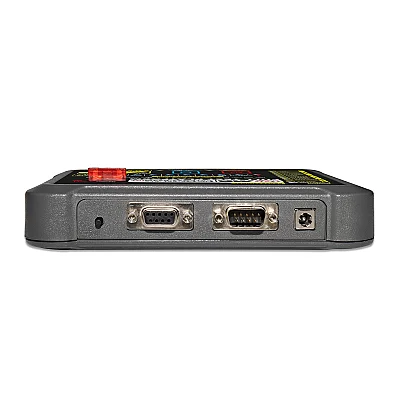

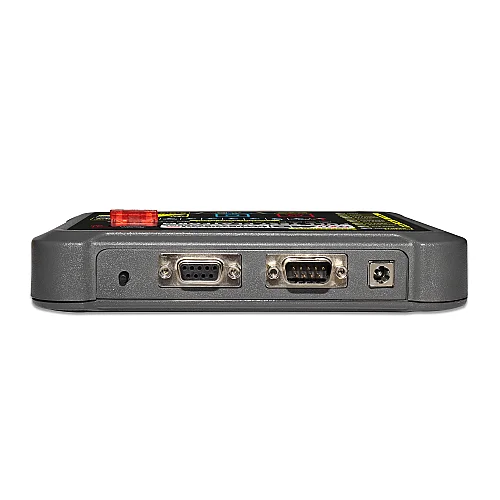

Mercedes 7in1 Professional Service Test Platform
Test and Program All EIS / ESL / EZS Systems Without a Vehicle Using a Single Device
An all-in-one desktop (bench) test platform developed for professional auto locksmiths and electronic specialists working on Mercedes-Benz electronic systems.
FULLY COMPATIBLE WITH ORIGINAL STAR DIAGNOSIS (OEM SUPPORT – Full diagnostics and testing without a vehicle using original Star Diagnosis)
The device operates in full compatibility with Mercedes-Benz Star Diagnosis.
On the desktop without a vehicle:
- Diagnostics (fault detection) can be performed on all modules
- Components can be tested
- Coding and personalization operations can be carried out
- Provides one-to-one testing with real vehicle simulation
You can perform all operations done on the vehicle directly on the desktop
REAL VEHICLE EXPERIENCE – ON YOUR DESK
With the original Star device:
- EIS / EZS
- ESL / ELV

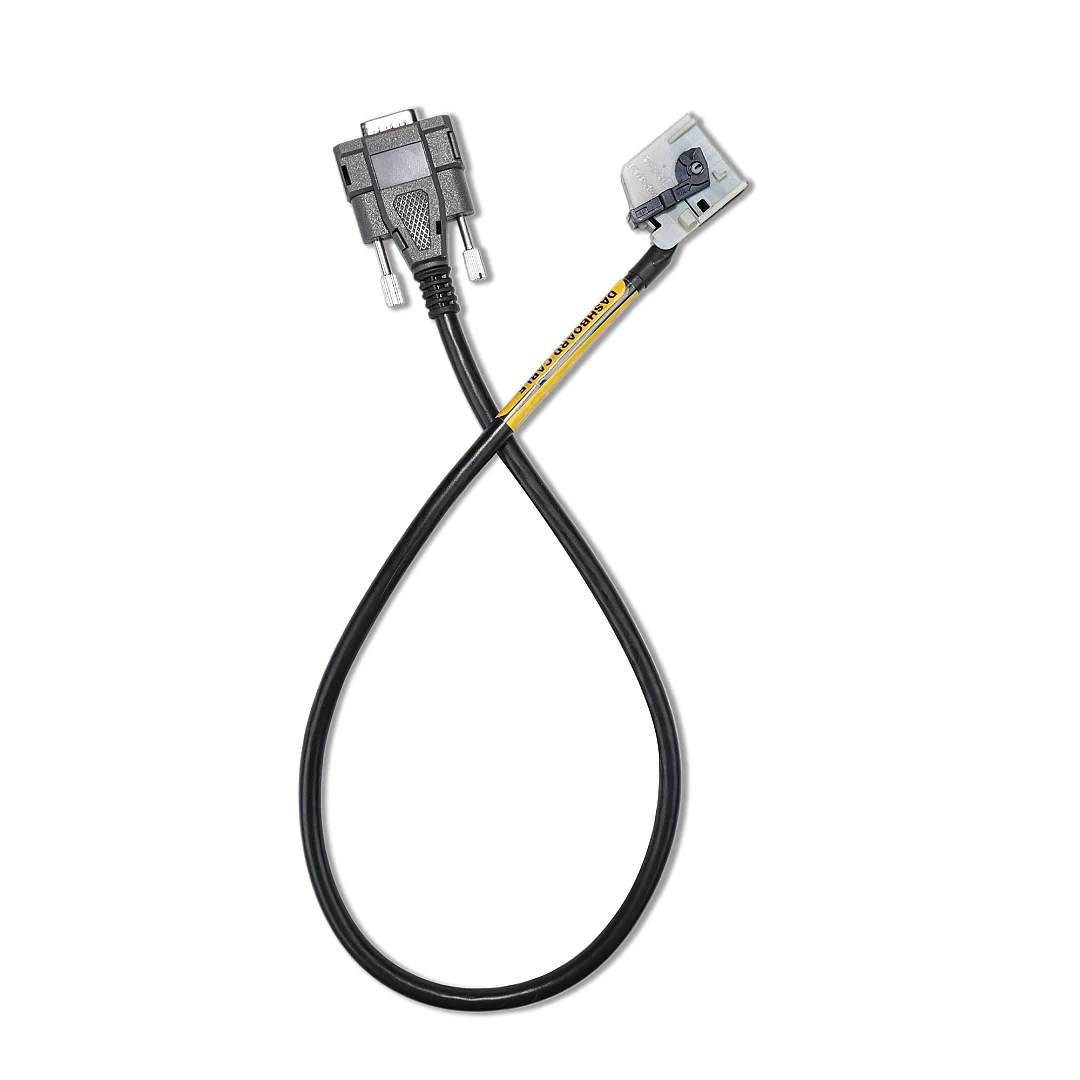

- Dashboard
- Gateway
- All other modules
can be tested as if they were installed in the vehicle.
ALL-IN-ONE SYSTEM – NO EXTRA DEVICES REQUIRED
- Gateway included
- ESL / ELV Emulator included
- FAST system included
- 100% vehicle-free testing
- No external Gateway required
- No external Emulator required
- No FAST Adapter required
- No G-BOX / ZN051 required
All systems are integrated into a single device
SMART MULTIPLEX SYSTEM (7 DEVICES IN ONE PLATFORM)
Thanks to the advanced multiplex infrastructure inside the device:
- 7 different popular devices are combined into one platform
- Automatically adapts according to the connected device with auto mode switching
SMART AUTO COMPATIBILITY SYSTEM
Automatically switches to FAST mode depending on the connected device

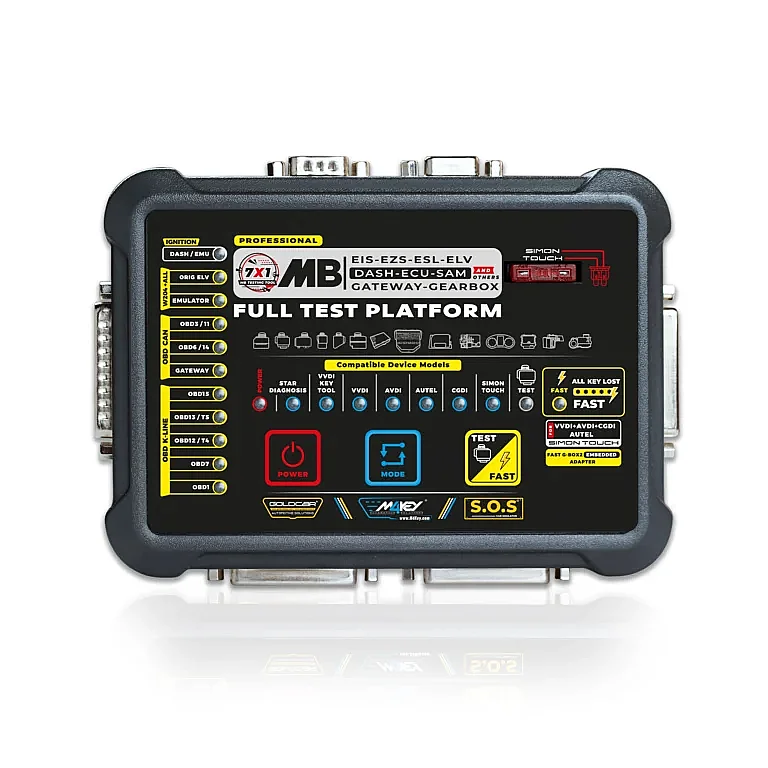

GENERAL FEATURES
- 7in1 integrated test platform
- EIS / EZS / ESL / ELV / Dashboard / Gateway testing and simulation
- Built-in ESL / ELV emulator
- Built-in Gateway simulator
- Desktop operation without a vehicle (Full Bench Test)
- Dashboard ignition button to power the panel
- 3 independent output ports with identical pin configuration
- Plug-and-play operation
- Automatic FAST mode switching
ADVANCED FUNCTIONS
- EIS / EZS password reading
- Key testing and verification
- ESL / ELV programming and personalization
- EIS renewal and erase operations
- Instrument cluster testing and control

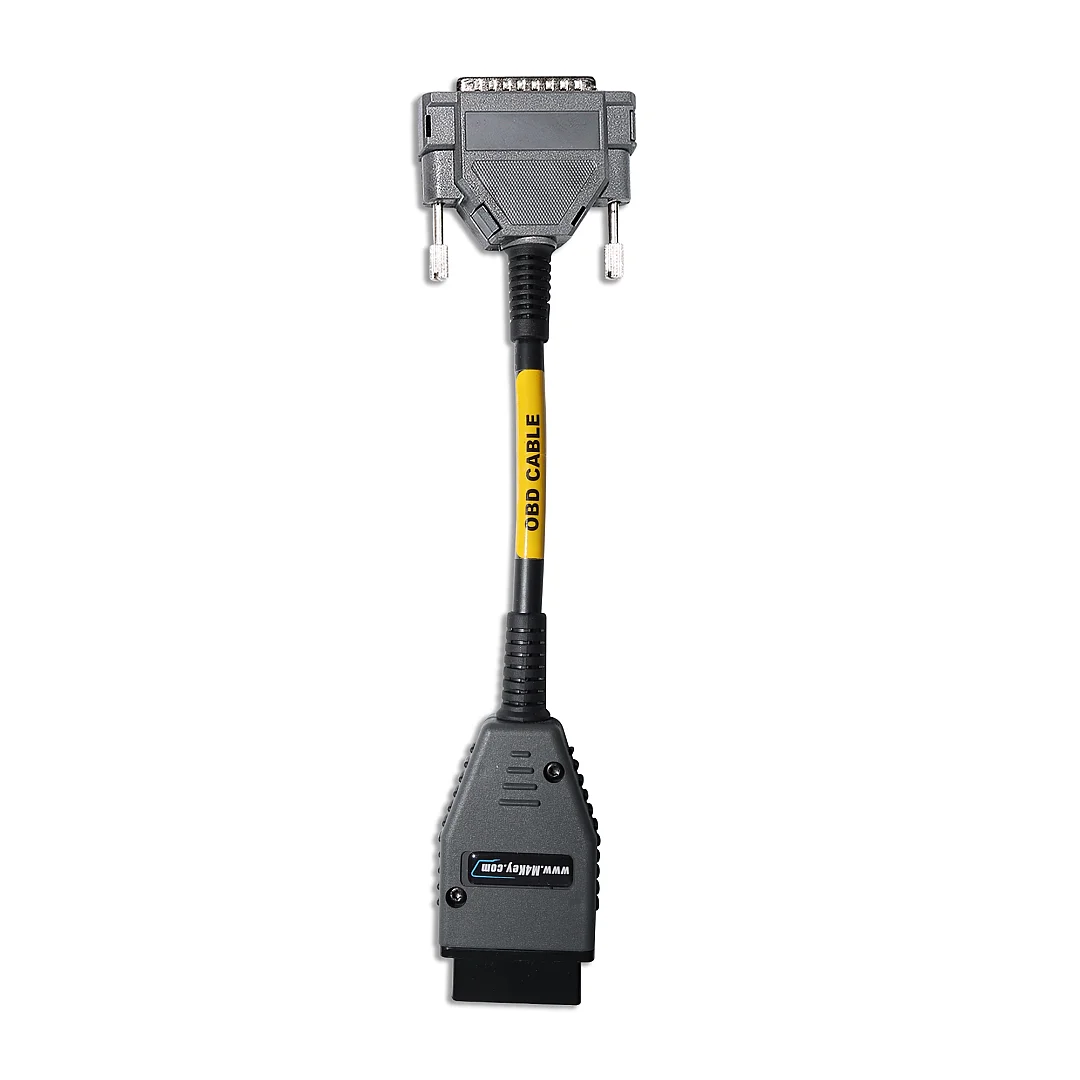

- OBD communication simulation
- CAN & K-Line protocol support
FULL COMPATIBILITY (NO ADDITIONAL HARDWARE)
- Star Diagnostic

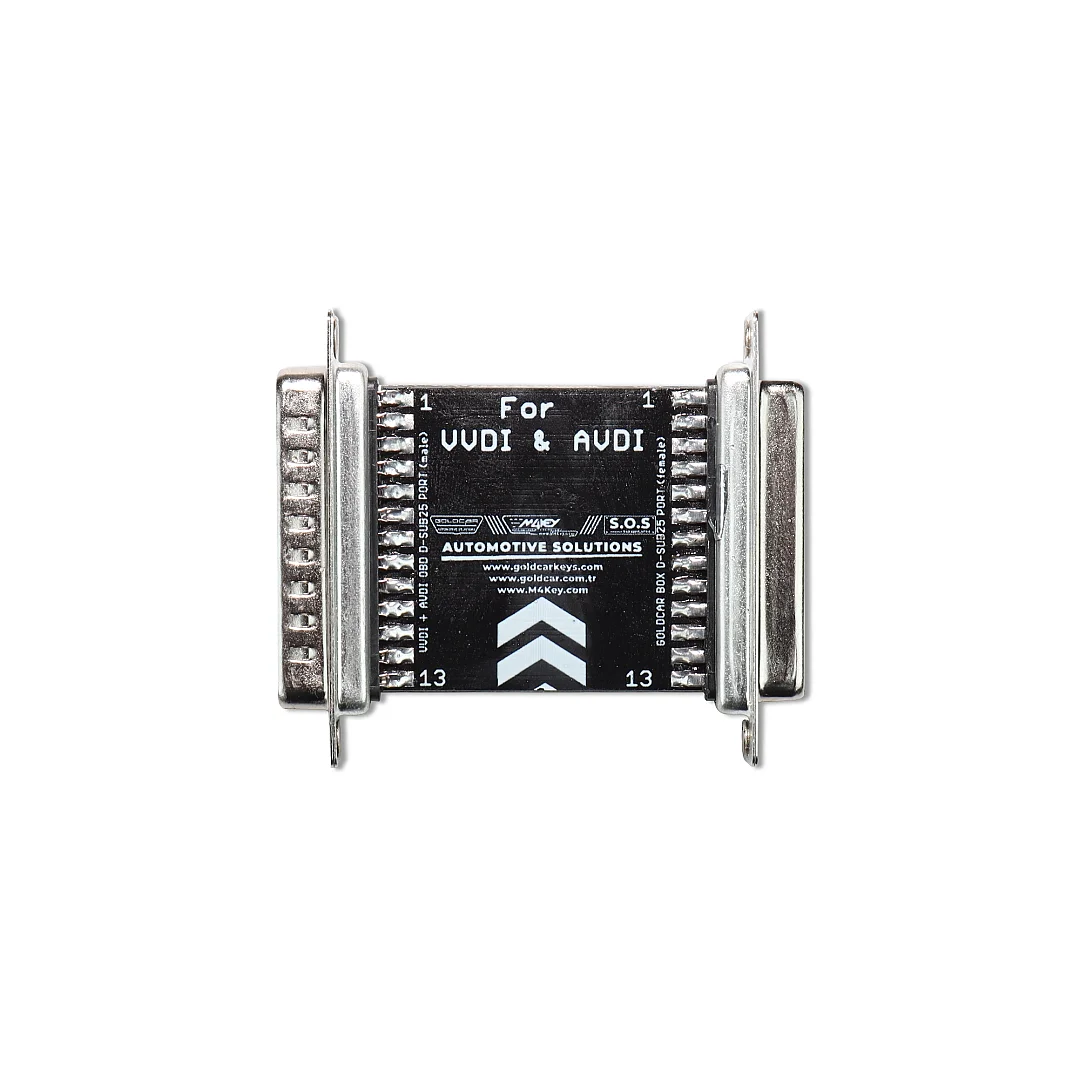

- VVDI Key Tool
- VVDI MB Tool
- Abrites AVDI
- Autel IM508 / IM608

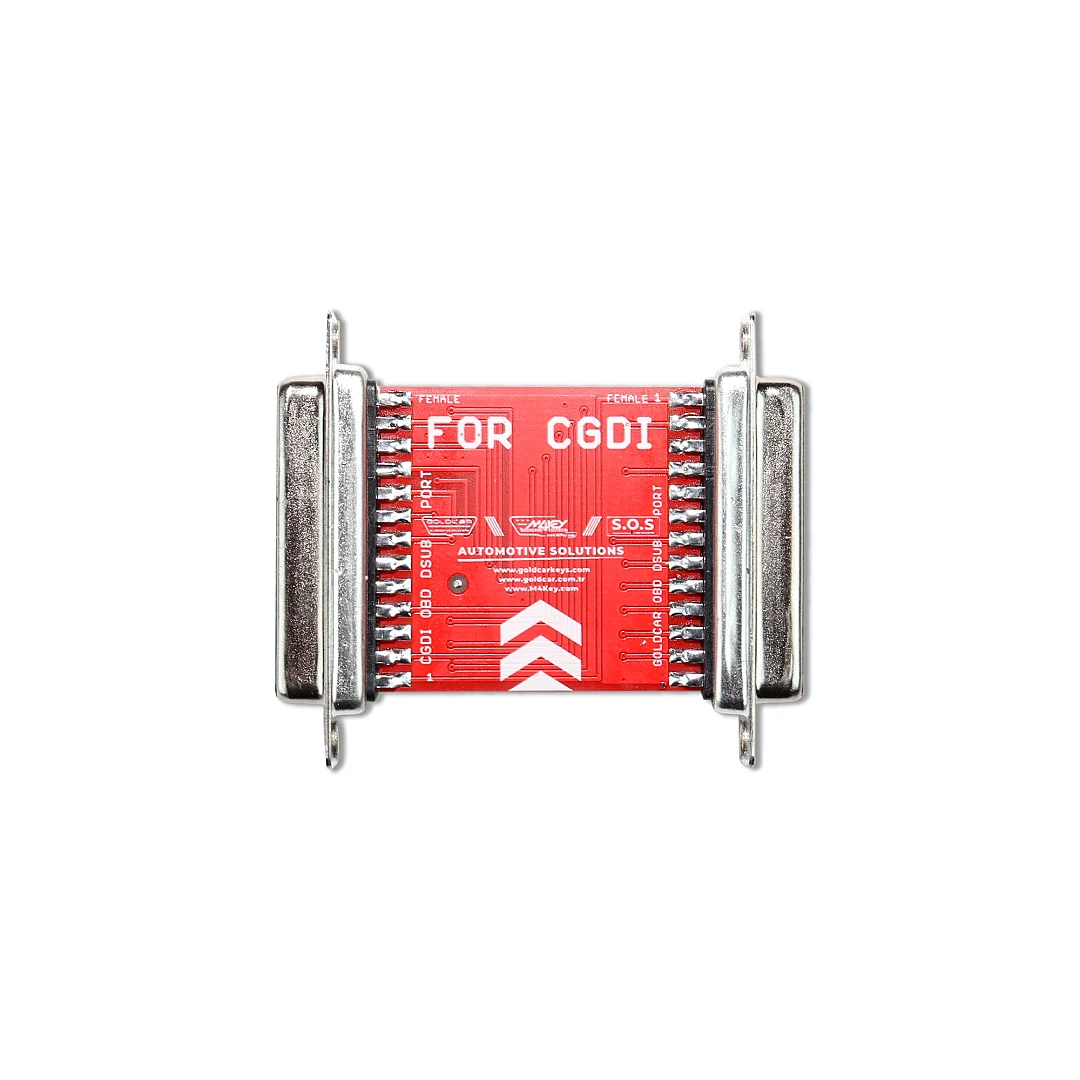

- CGDI MB Tool
- Simon Touch
All devices automatically switch to FAST mode
SUPPORTED VEHICLE SERIES
- W202 / W208 / W210
- W205 / W222

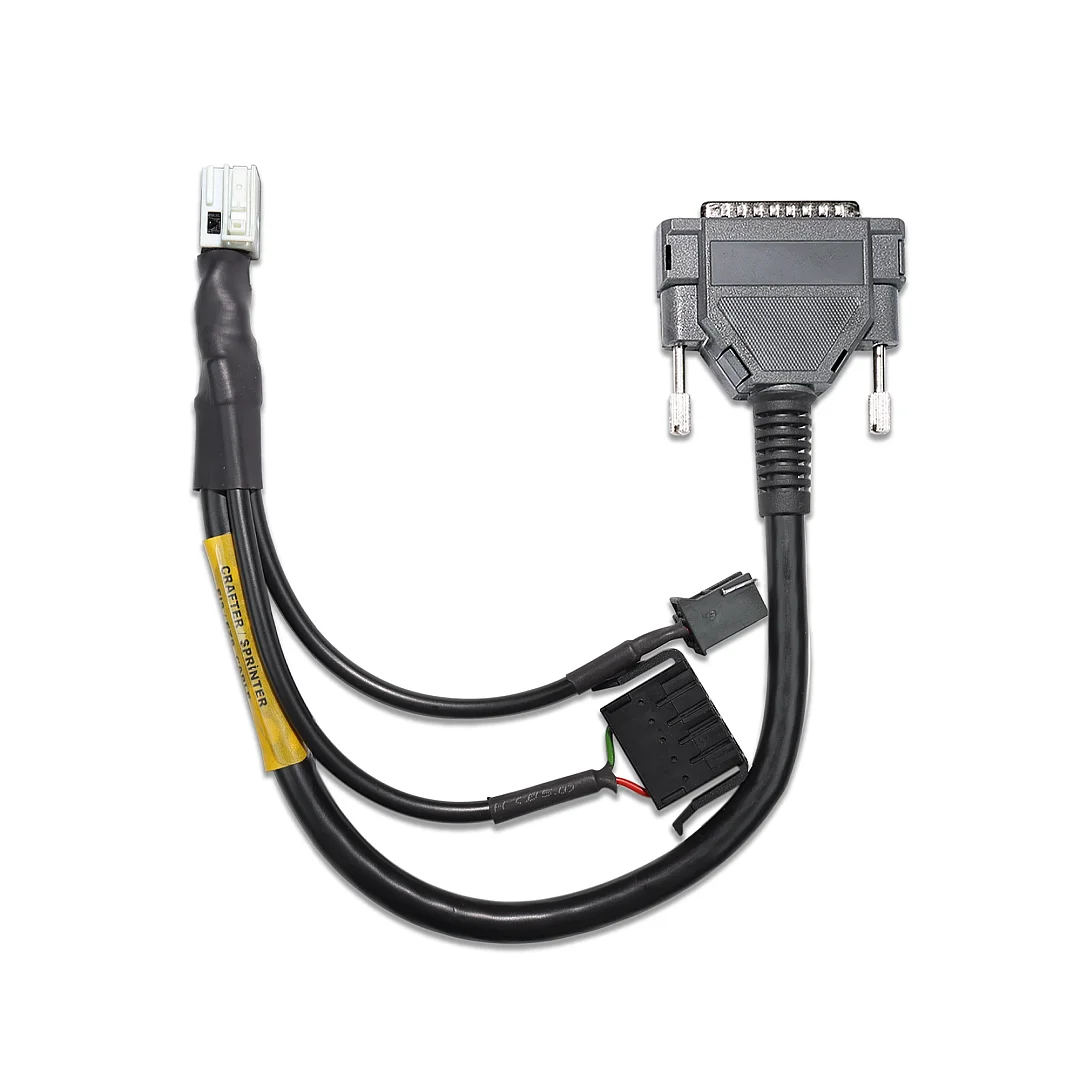

- W906 / CRAFTER / SPRINTER
- W215 / W220 / W230
- W164 / W251
- W169 / W171 / W209 / W211 / W245
- W172 / W204 / W212
- W166 / W176 / W246 / W447
- W203 / W463 / W639 / VITO / K-Line + CAN protocol
- W221 / W216
FBS3 + FBS4 support
SUPPORTED ESL / ELV SERIES
- W203 / W209 / W211 / W219 / W639 / W906 (5 pin)
- W202 / W208 / W210 (5 pin)
- W169 / W245 (4 pin)
- W204 / W207 / W212 (4 pin)
- W176 / W447 (5 pin)
- W203 / W639 (3 pin)
EIS / EZS / ELV / ESL TESTING AND PROGRAMMING
- Testing without vehicle connection
- EIS testing with built-in emulator
- Direct connection with original ESL / ELV
- ELV programming and personalization
- Testing whether the key is functional
SMART SYSTEM DETAILS
- Support for Motorola-based legacy systems
- Support for NEC-based new generation systems
- Automatic emulator switching
- Built-in Gateway and ELV emulation

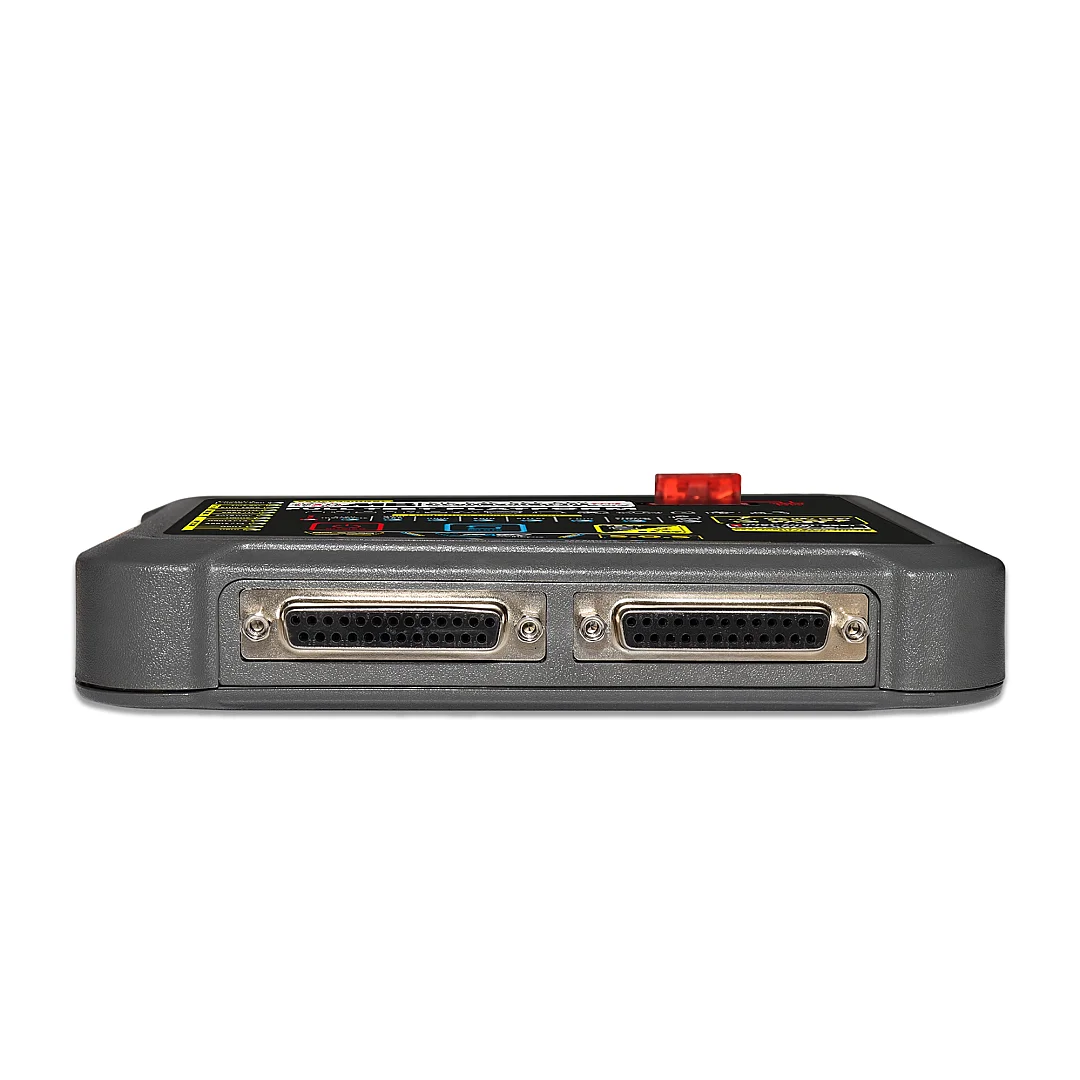

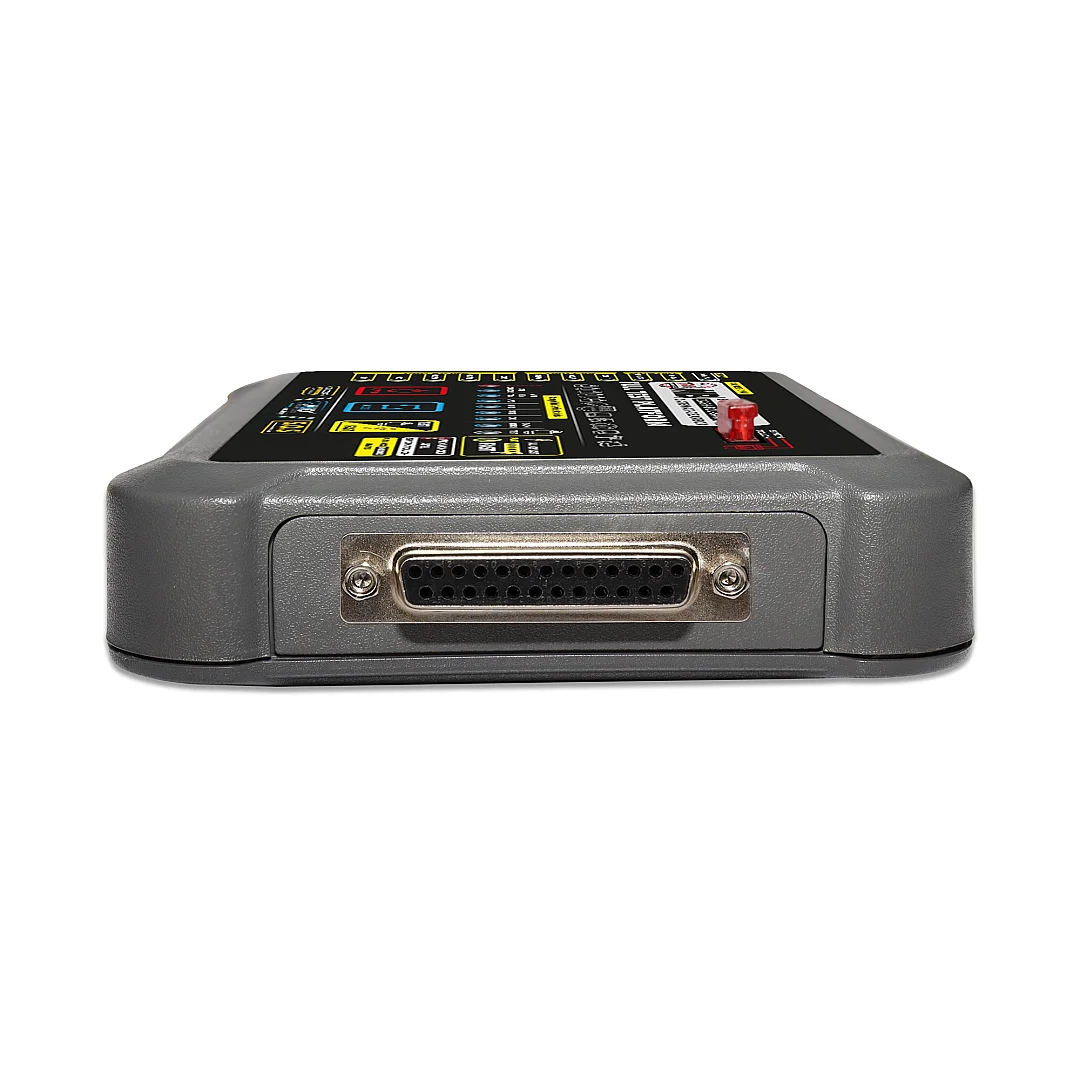

3 OUTPUT PORT ADVANTAGE
- 3 different outputs with identical pinout structure
- You can connect using any desired port
- Provides great convenience for professional use

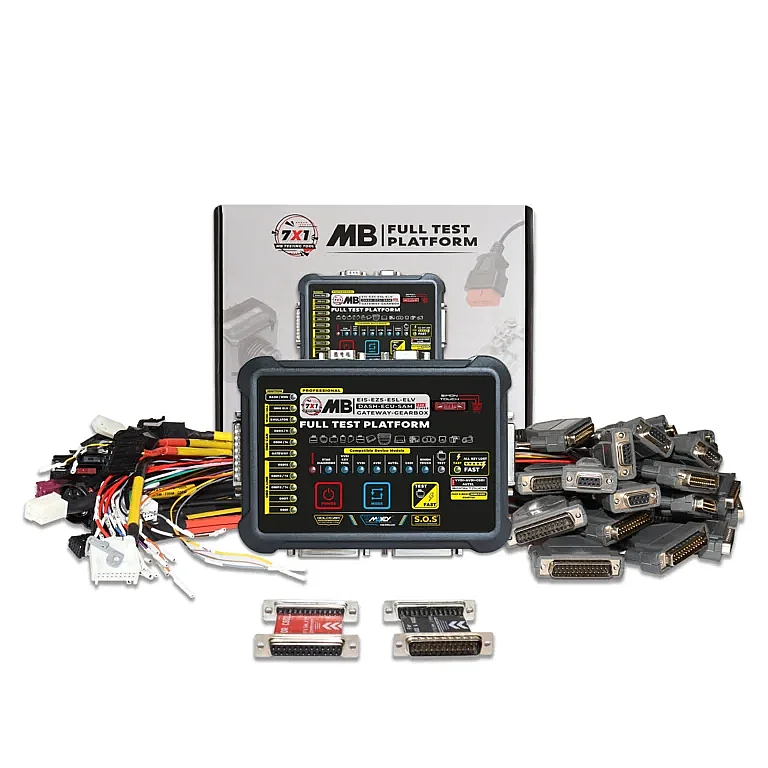

PACKAGE CONTENTS

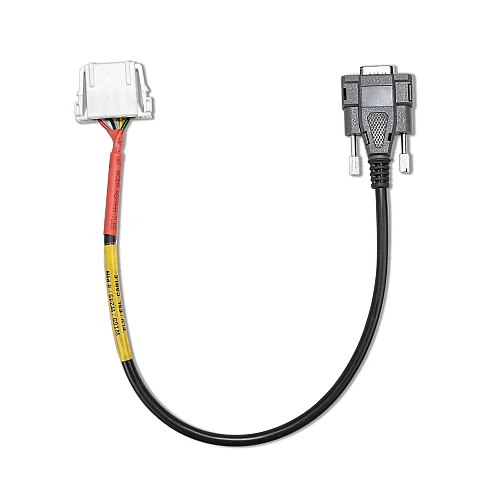

- Original socket set compatible with all Mercedes models

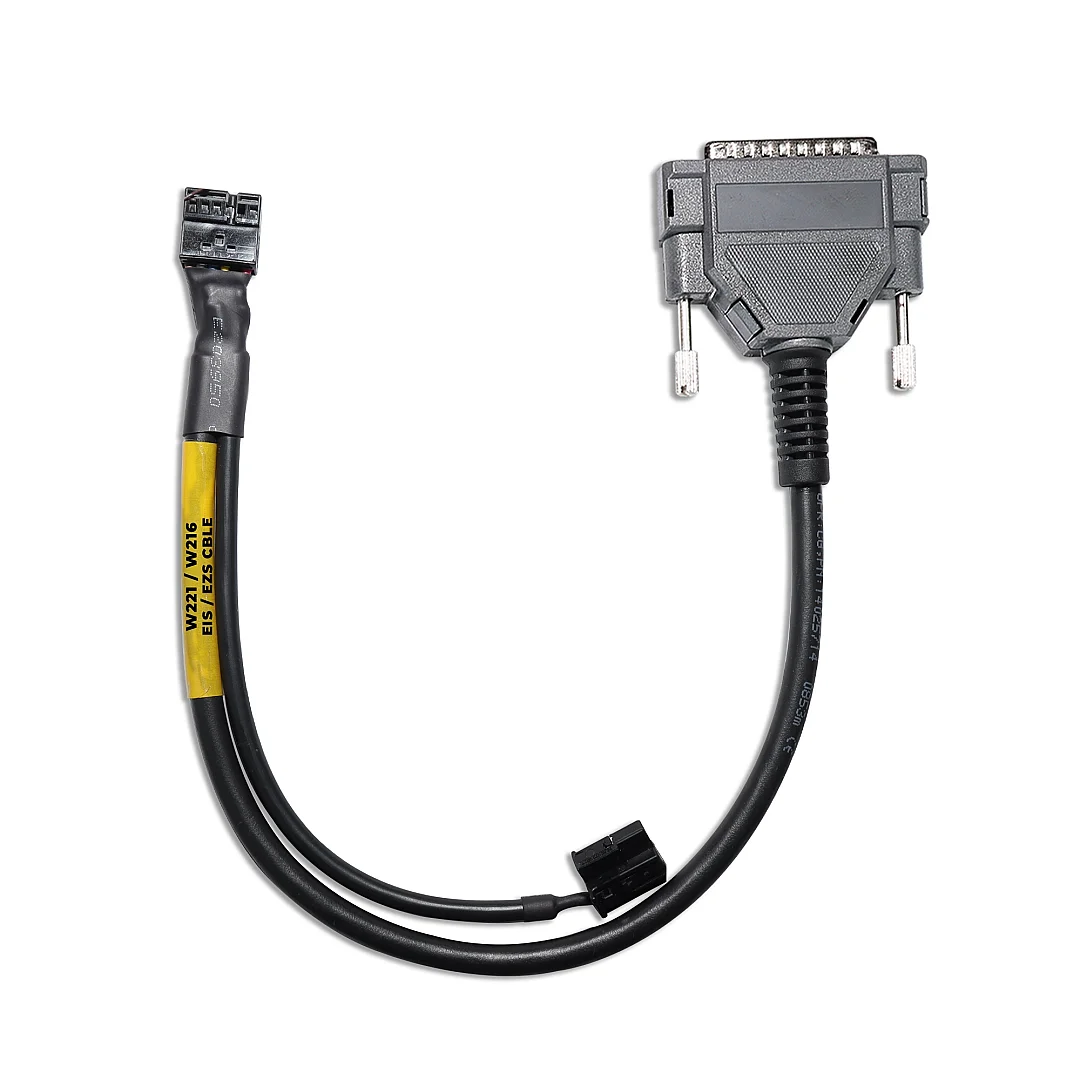

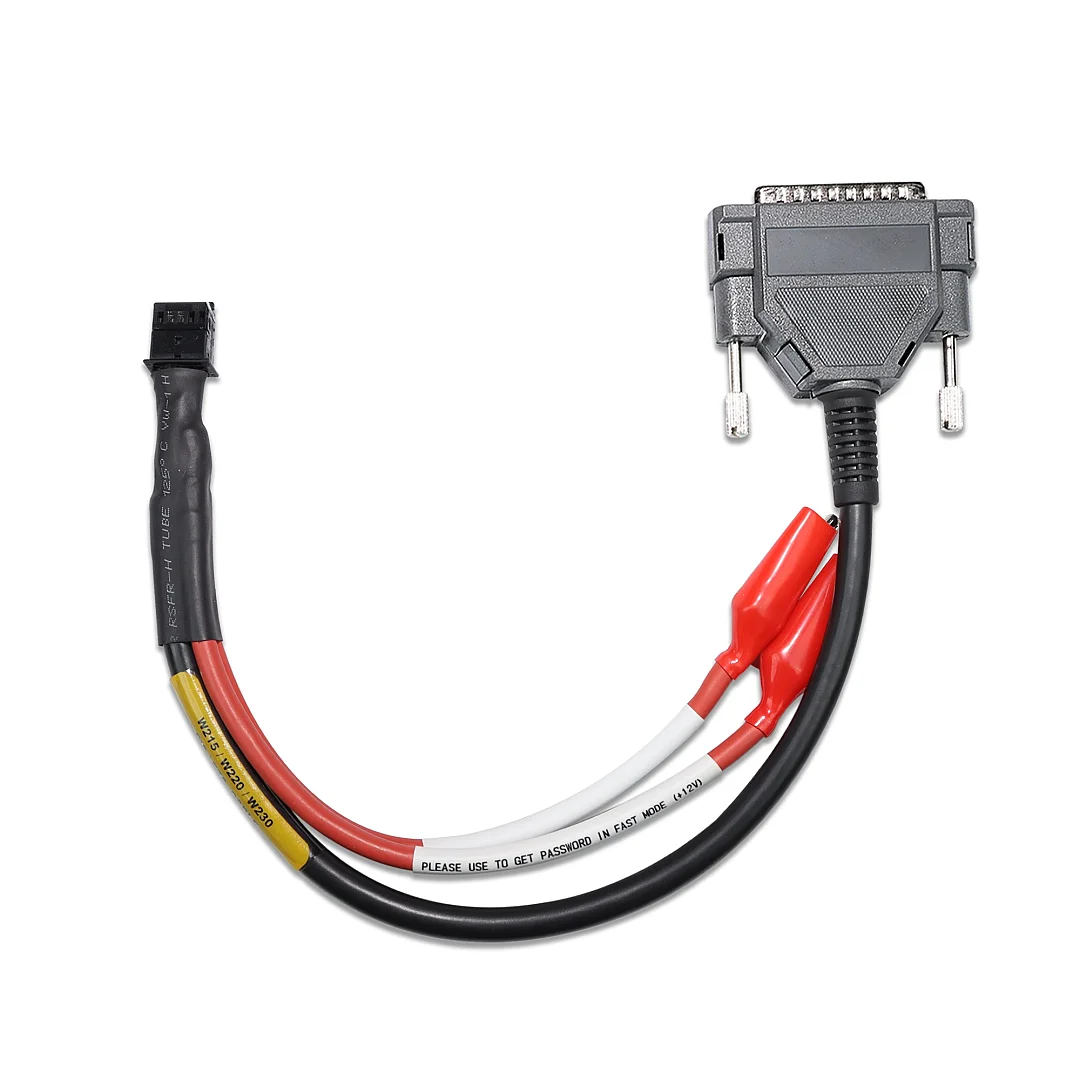

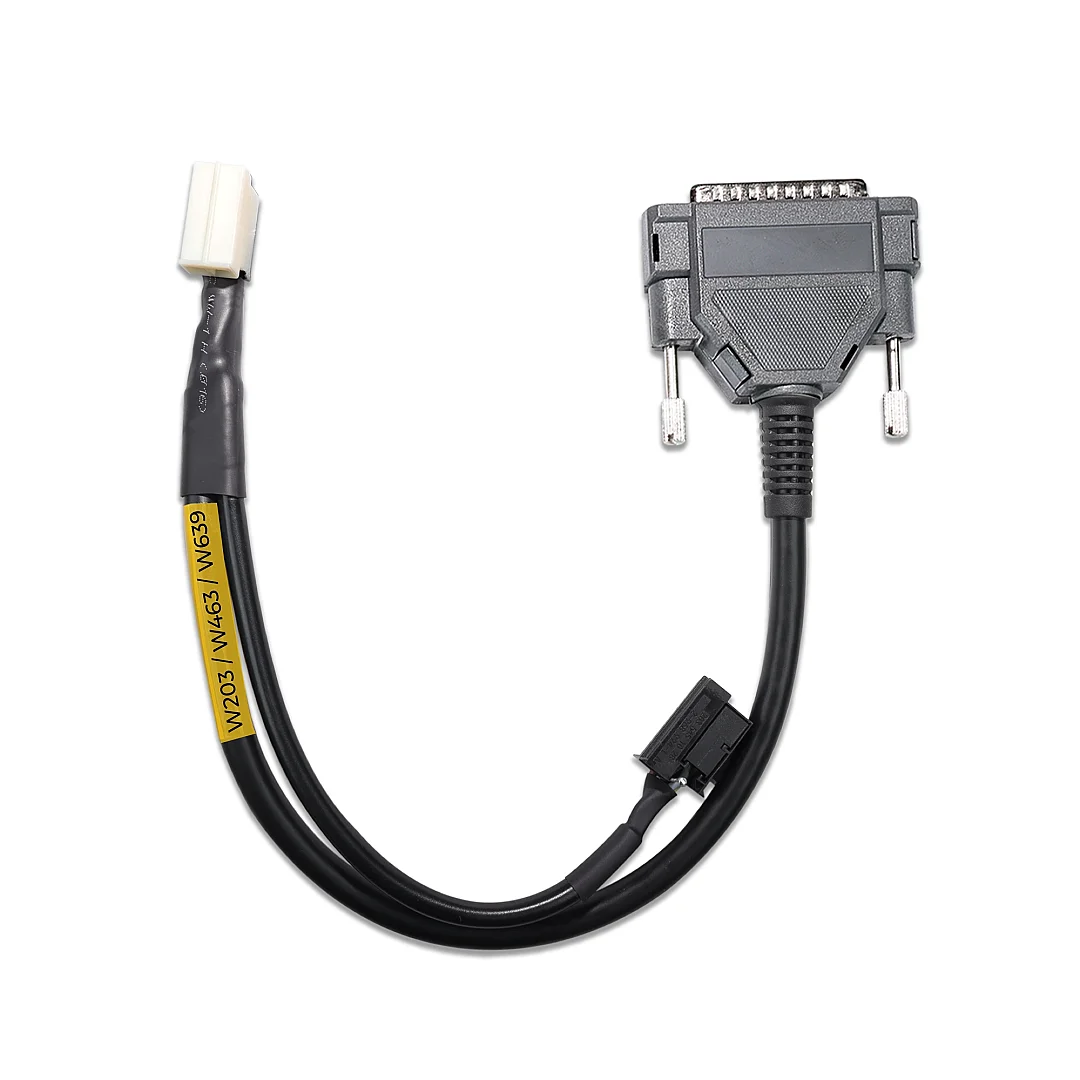

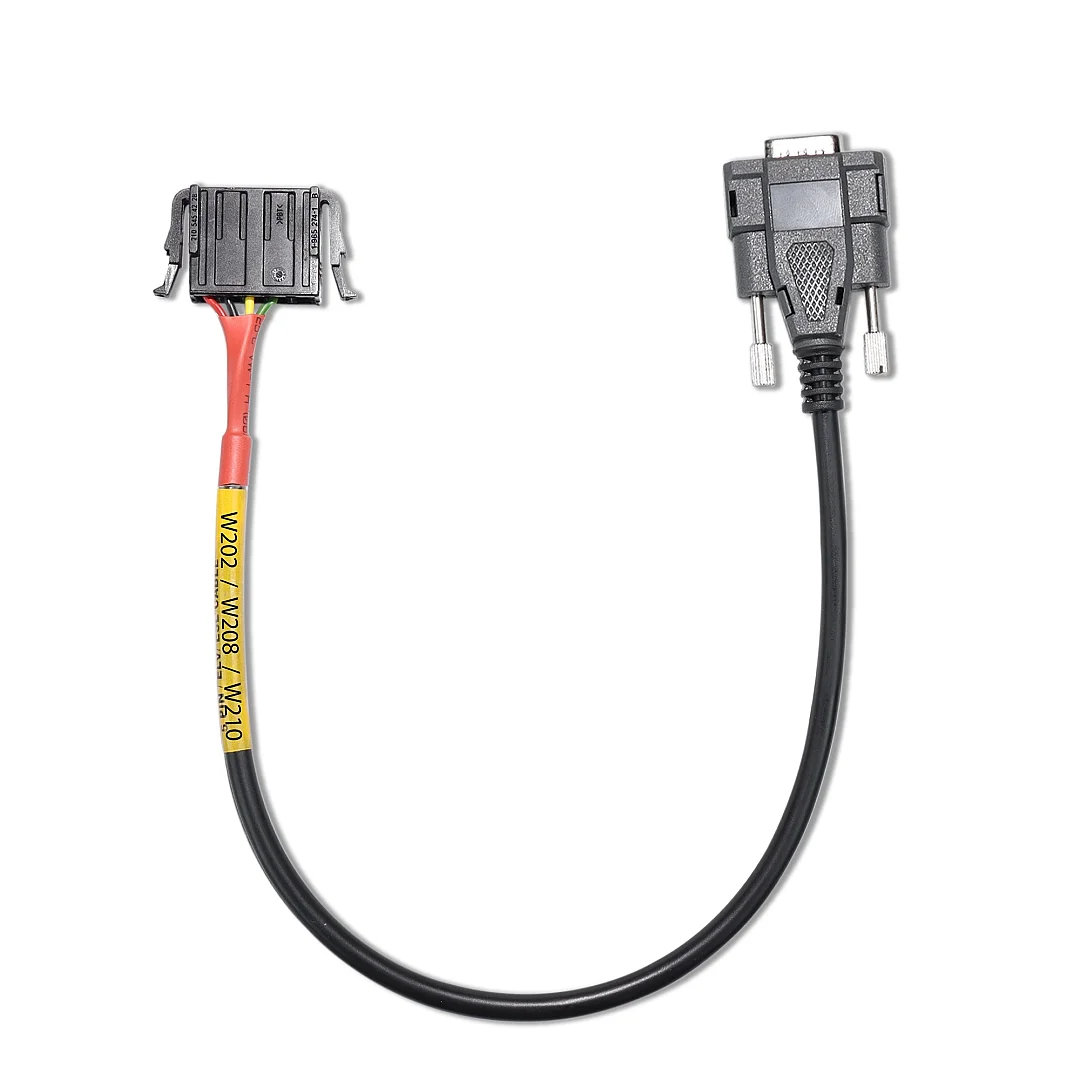

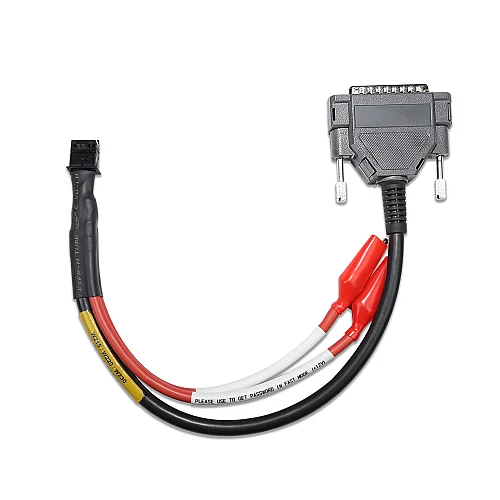

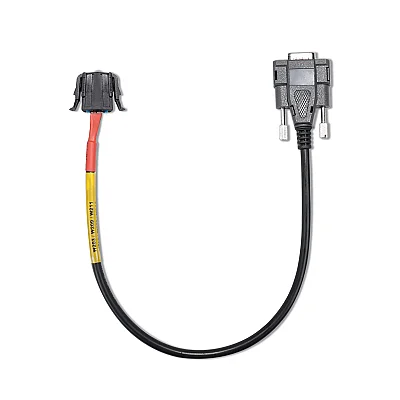

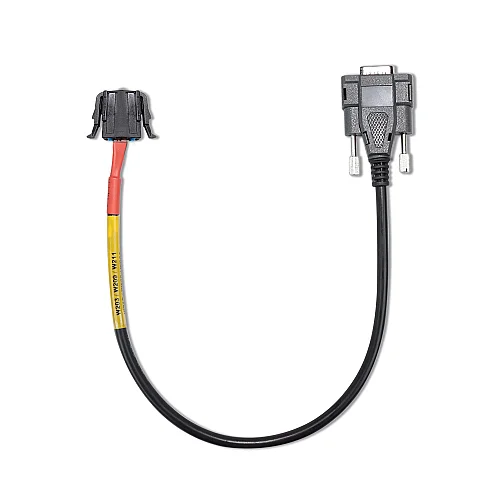

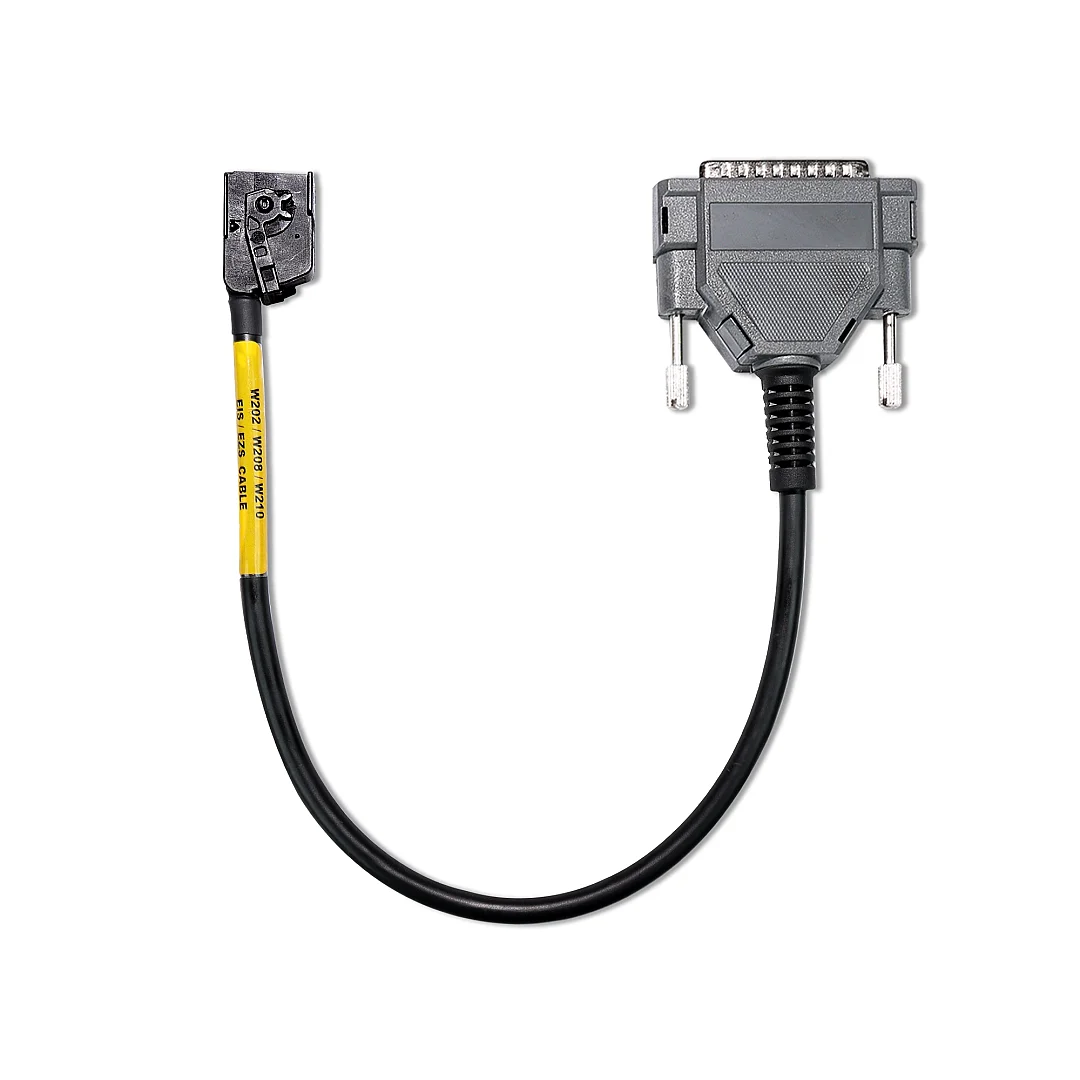

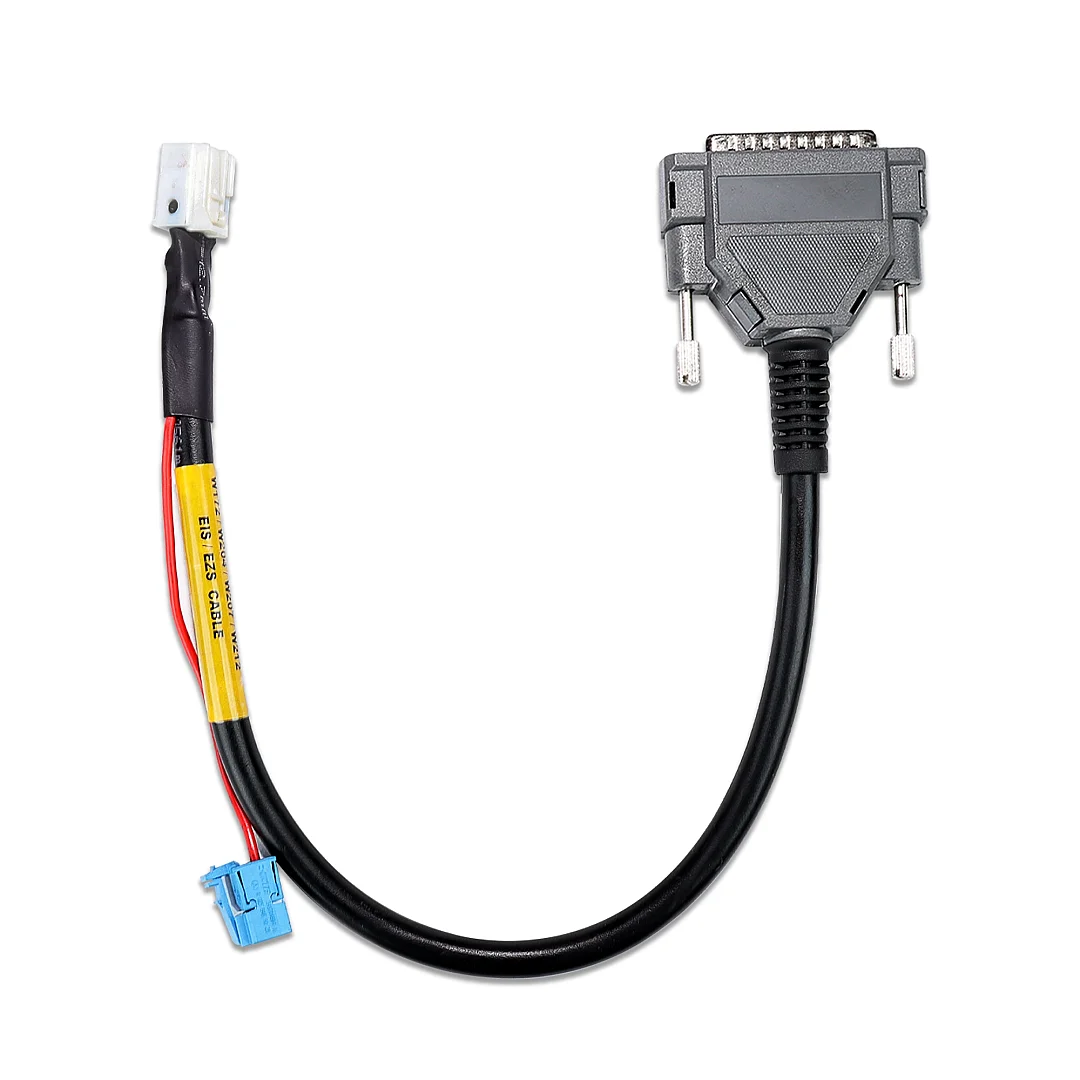

- EIS / EZS connection cables

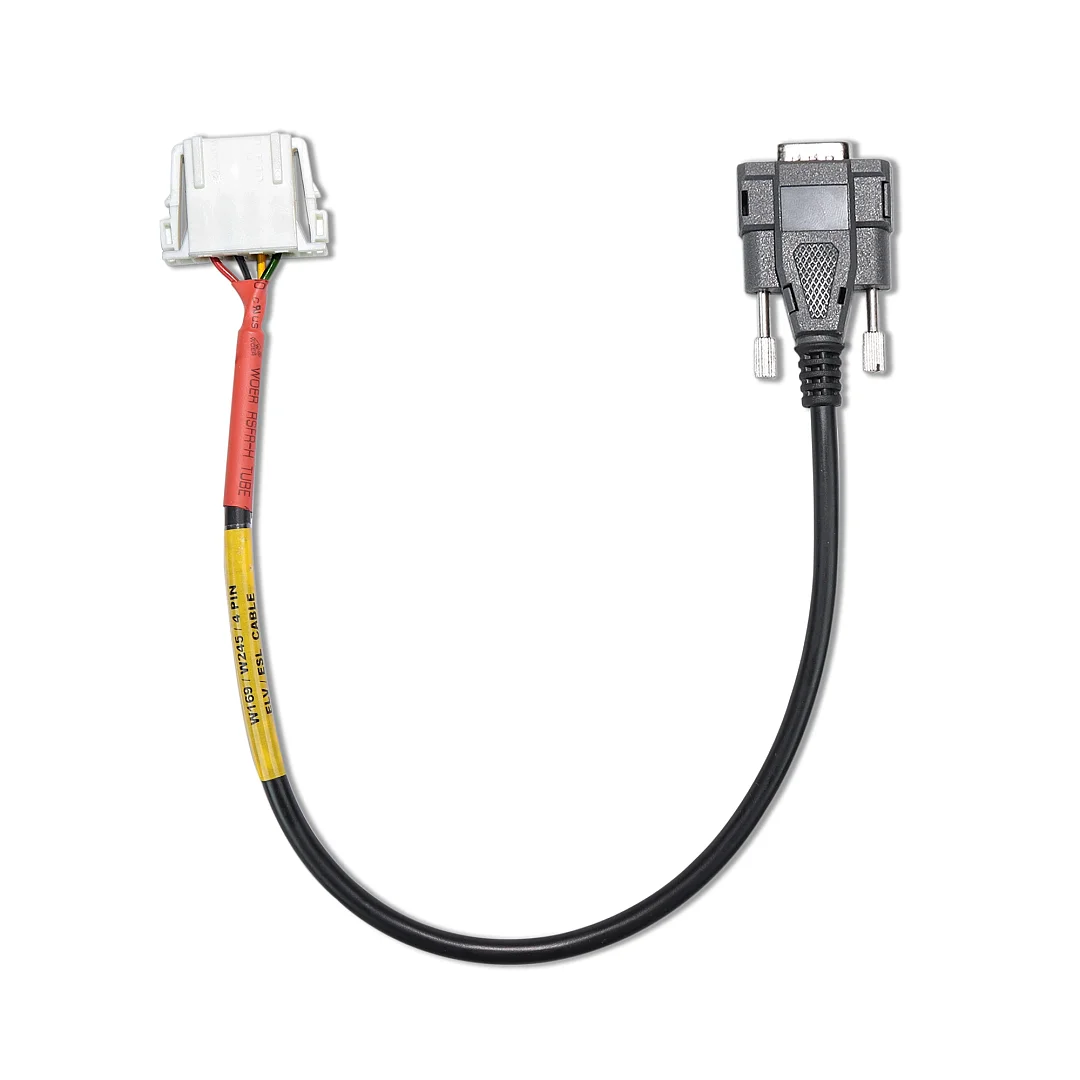

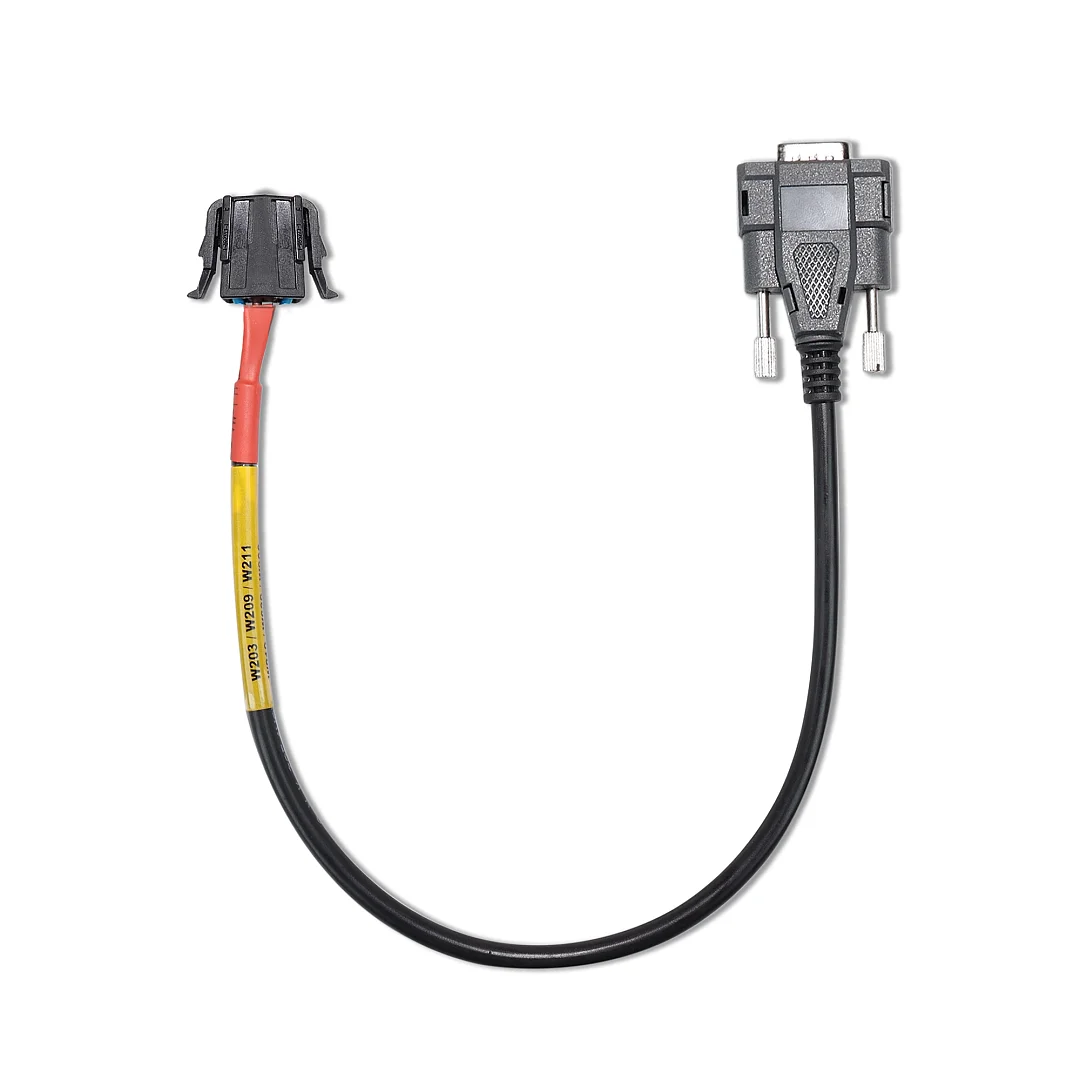

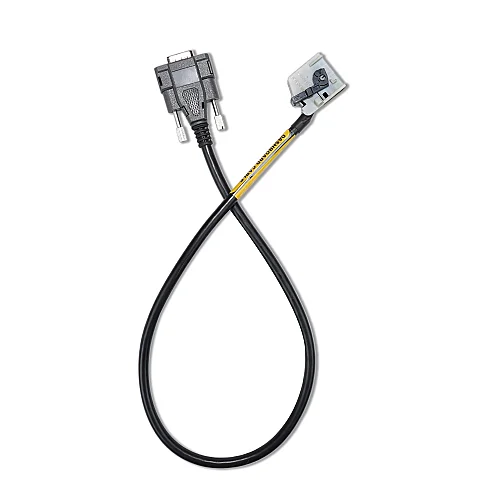

- ESL / ELV cables

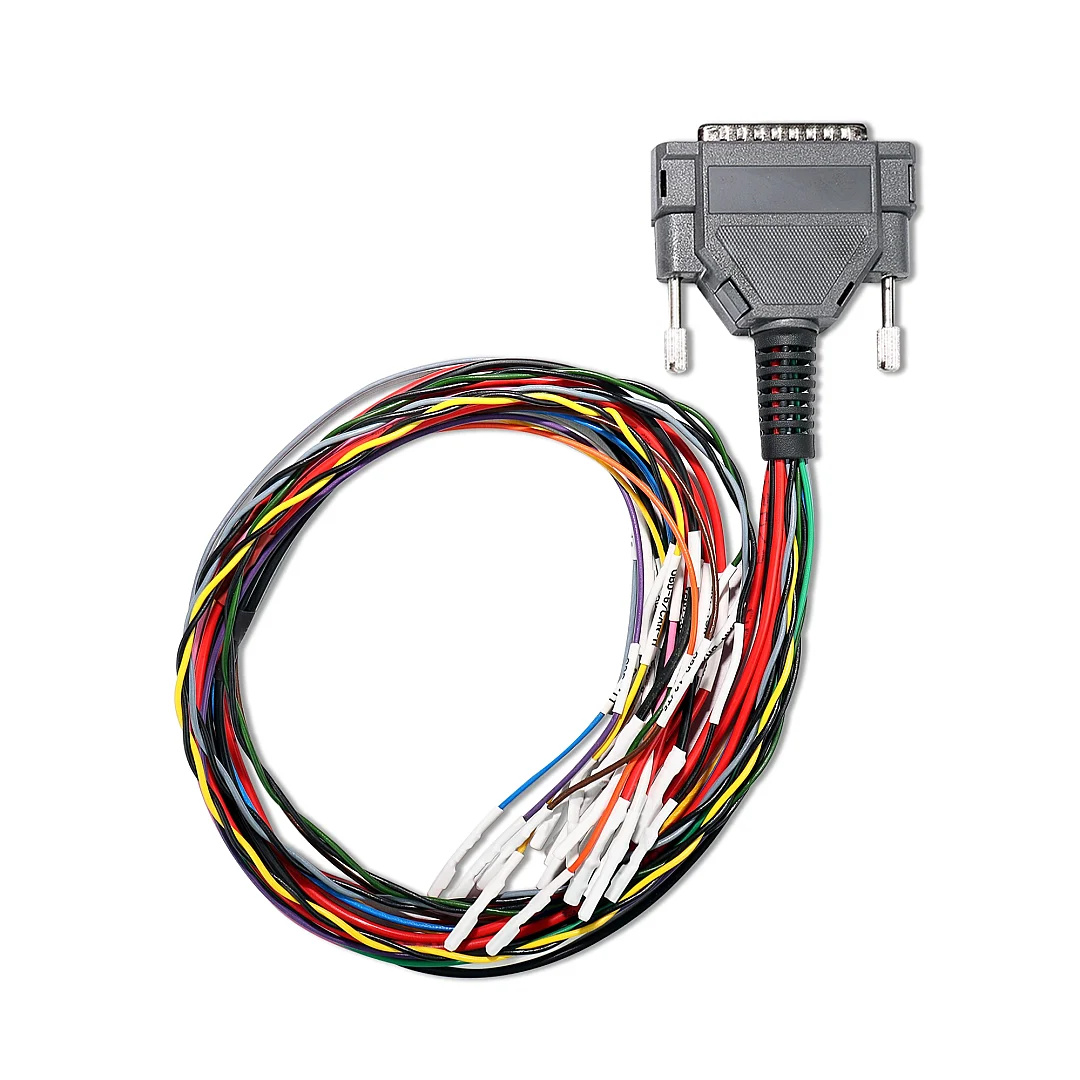

- ECU output cable

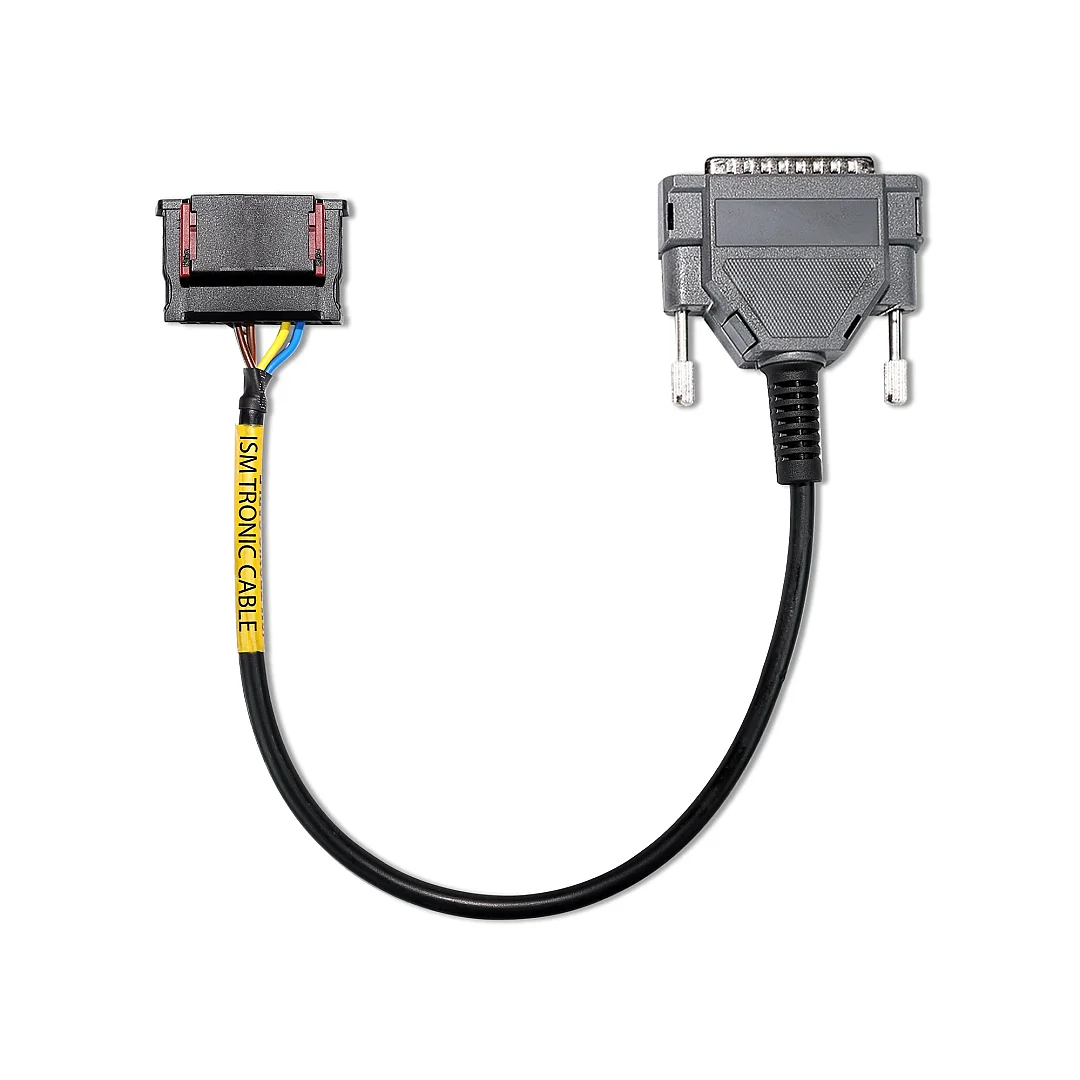

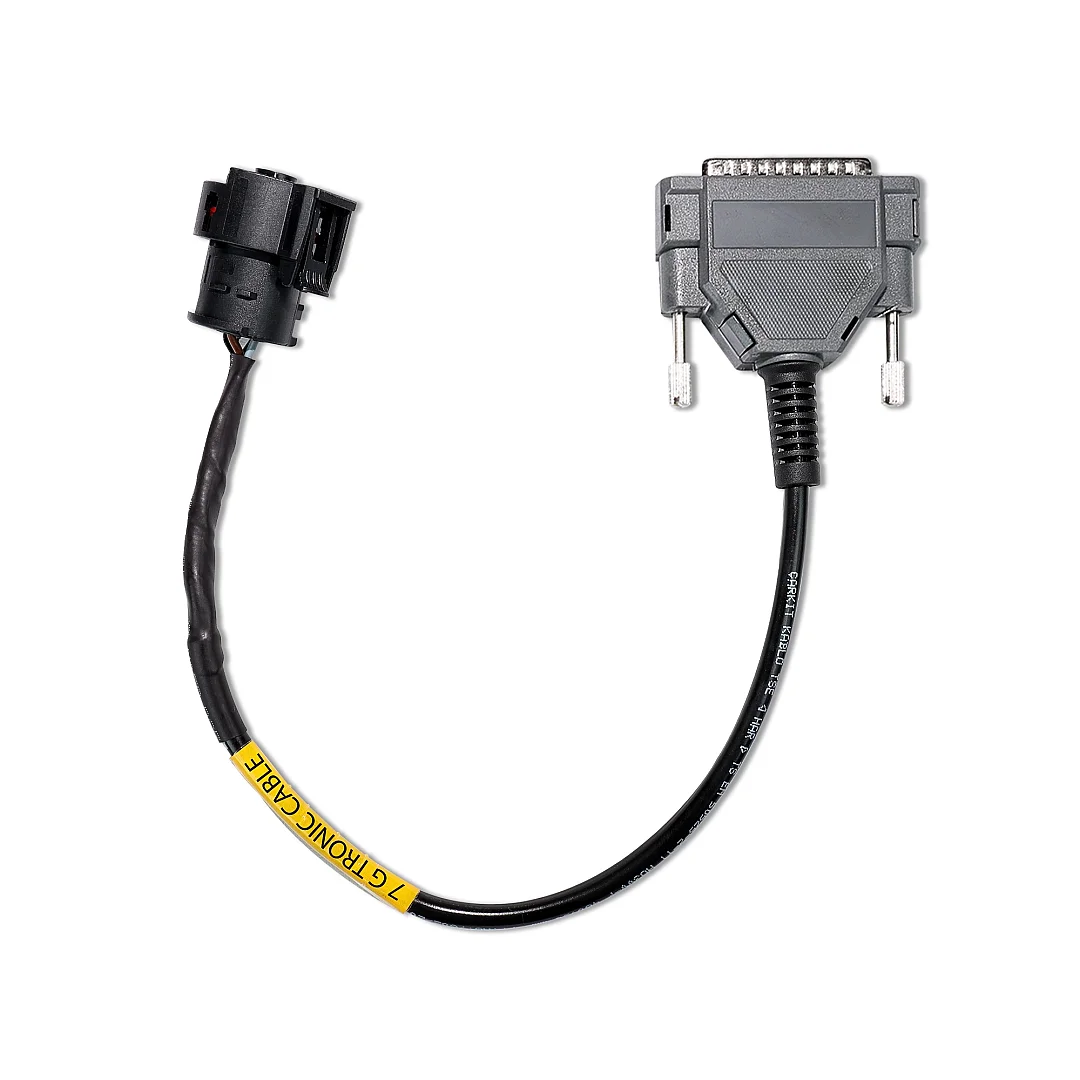

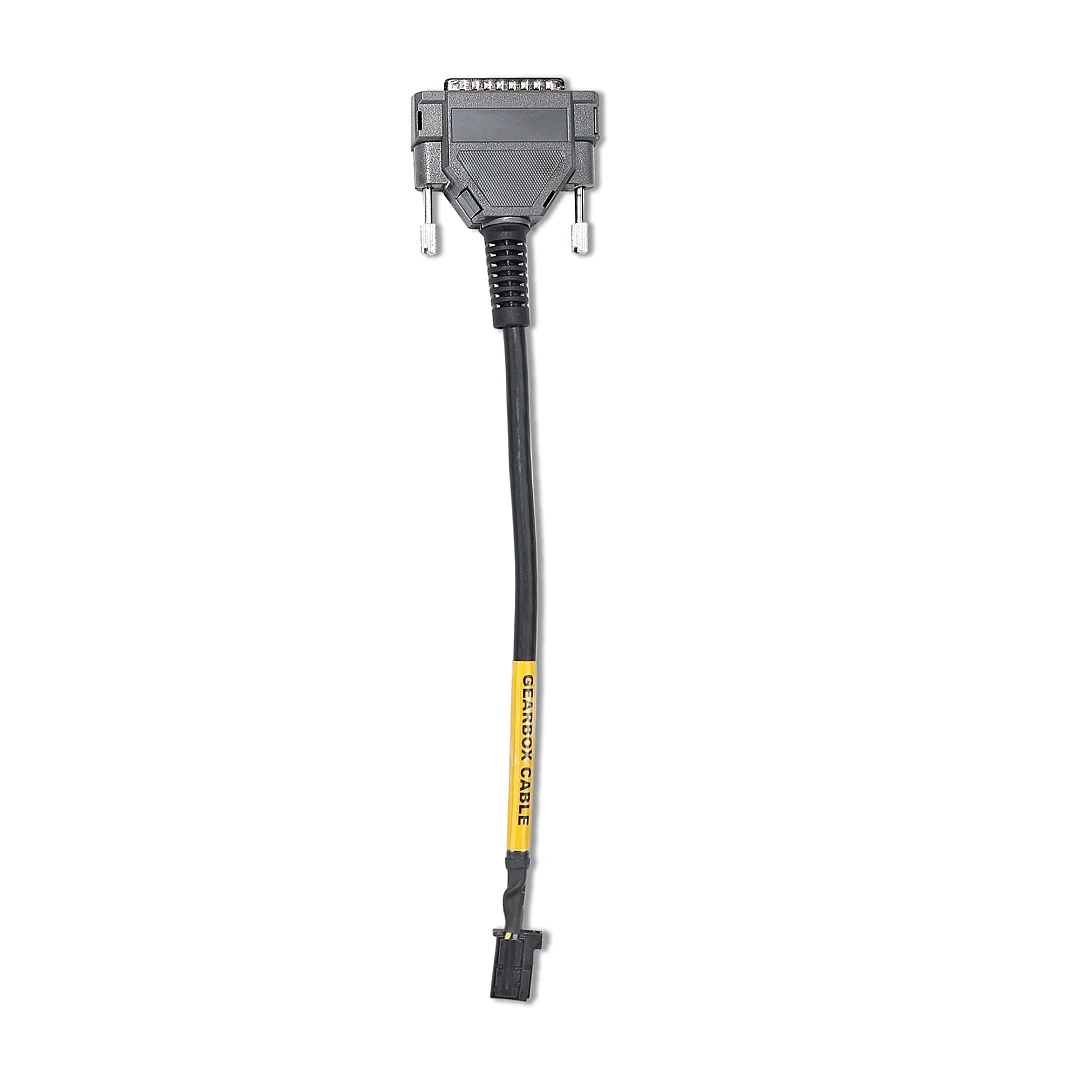

- Transmission cables (7G-Tronic / ISM)

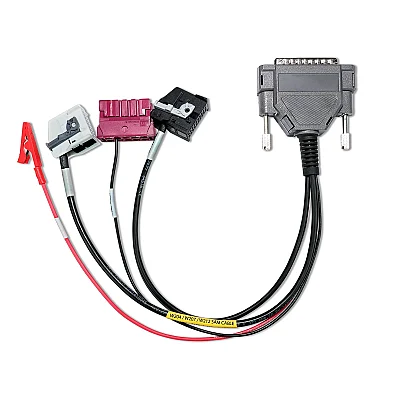

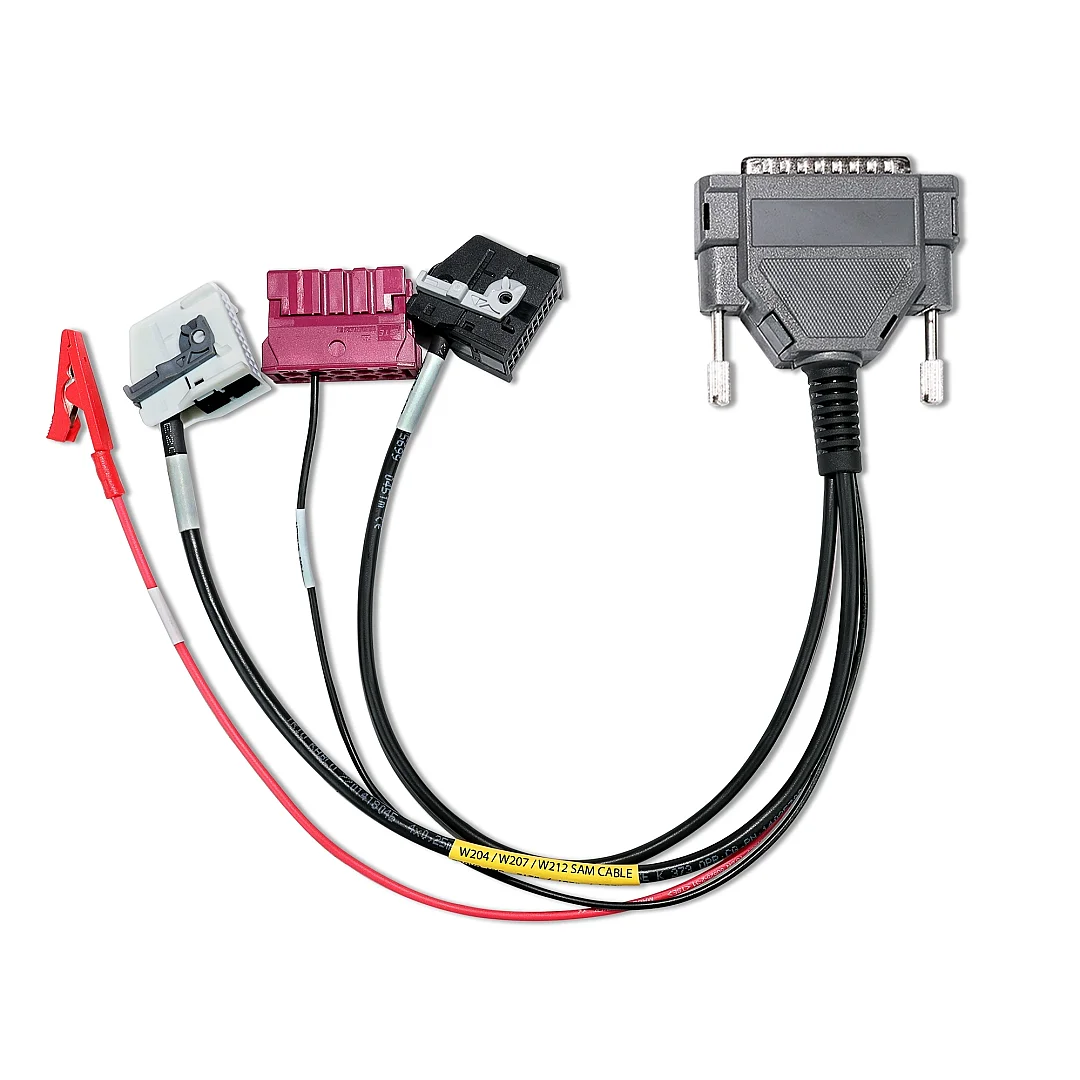

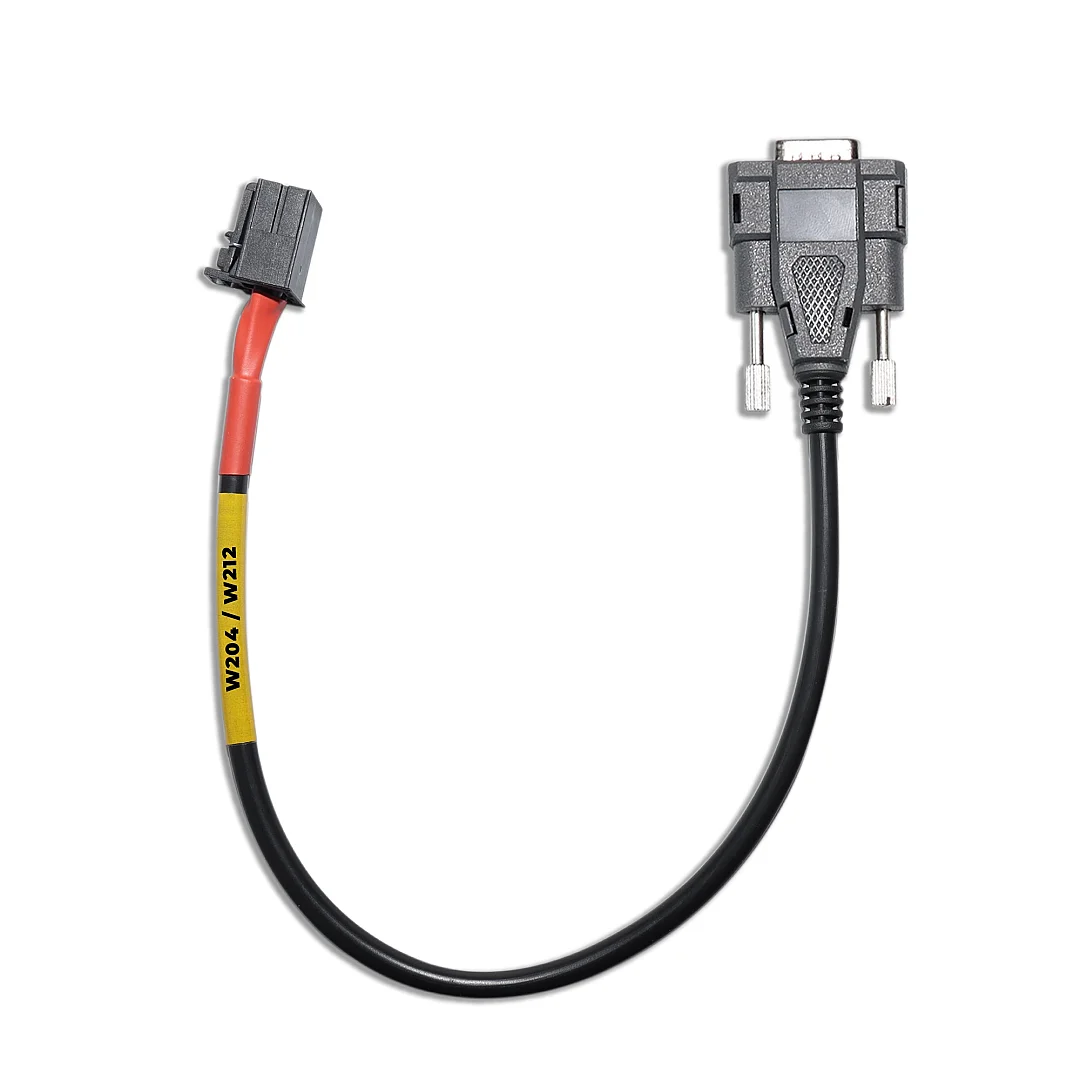

- W204 / W207 / W212 SAM Connection Cable
TARGET USERS
- Auto locksmiths
- ECU repair specialists
- Mercedes electronics experts
- Professional service centers
WHY GOLDCAR 7in1?
- All systems in one device
- Eliminates the need for additional equipment
- Faster and more practical use
- Stable and professional infrastructure
- Designed for real service use
