Xhorse Audi BCM2 Solder Free Adapter for VVDI Key Tool Plus and VVDI2 + VVDI Prog

Product Description

Xhorse VVDI BCM2 Solder-Free Adapter is used to read Audi's encrypted BCM computer data. There is no need to solder anymore while reading AUDI BCM2 module, therefore, it is friendly to the people without soldering techniques. Being solder-free it creates a safer environment and also protect users’ money by avoid damaging AUDI BCM2 modules.
Xhorse VVDI BCM2 Solder-Free Adapter for Audi AKL and Add Key Work with Key Tool Plus/ Mini PROG/ VVDI2+VVDI Prog

Xhorse BCM2 solder-free adapter is the best affordable choice when all your keys are lost or when you want to add keys. It works with Key Tool Plus/ VVDI2+VVDI Prog. It's able to provide a simple and safe way to add keys as well as a solution when all keys are lost for AUDI vehicles.

Support:

2013-2019 A4L,  A5, Q5
BCM2 version: 0711, 0650, 0641, support add key and all keys lost

2013-2019 A4L,  A7, A8
BCM2 version: 0825, 0824, 0827, support get BCM2 immo data when all keys lost

Support Get BCM2 IMMO Data without original key ID
Support exchange BCM2 function in future updates.


	Add Key		All Keys Lost
	How to Acquire BCM2 data?	Does it require Synchro data?	How to Acquire BCM2 data	Does it require Synchro data?
A4L/A5/Q5 -2013	OBD	No	OBD/some need remove BCM2	No
A4L/A5/Q5 2013-2019	Xhorse BCM2 Adapter	No	VVDI BCM2 adapter	No
A6L/A7/A8 -2013	OBD	Yes (Acquire from working key)	OBD/some need remove BCM2	Yes (Acquire Synchro data from 3rd party service provider)
A6L/A7/A 2013-2019	OBD	Yes (Acquire from working key)	VVDI BCM2 adapter	Yes (Acquire Synchro data from 3rd party service provider)

Xhorse AUDI BCM2 Adapter Wiring Diagram:

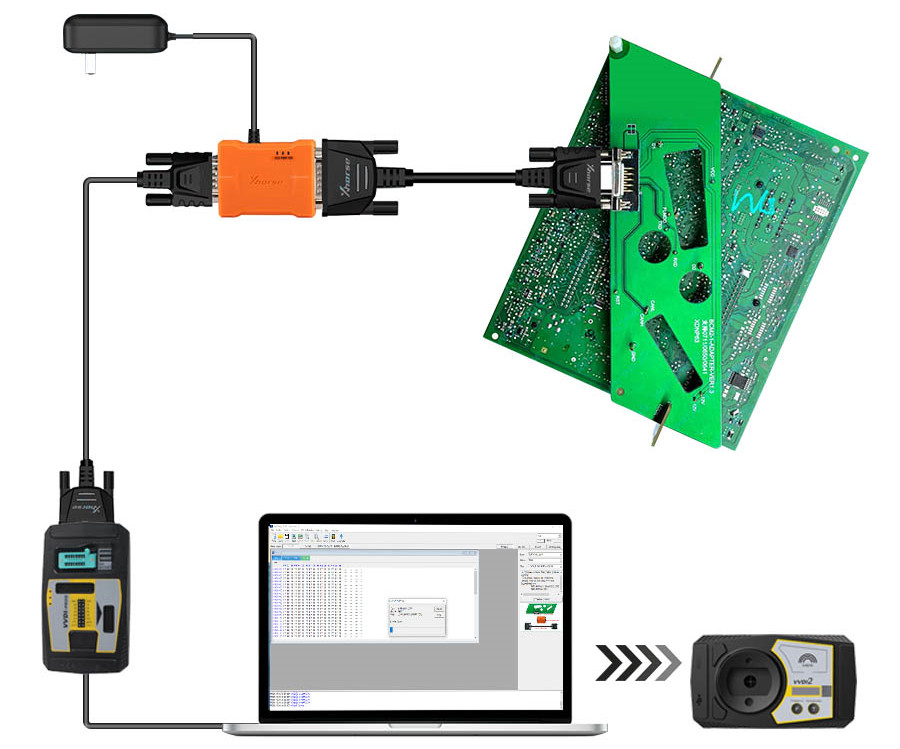

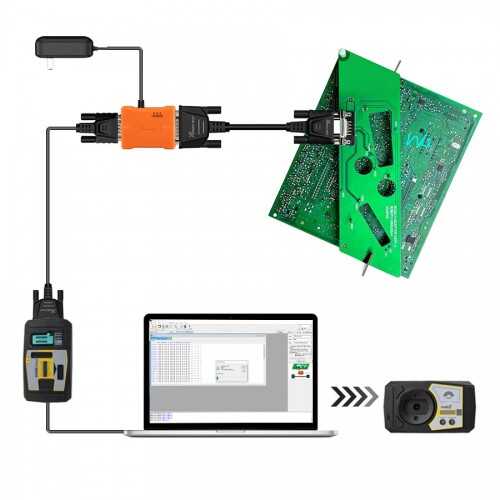

​Connect the Device with VVDI2 + VVDI Prog (VVDI Prog is Used to Read BCM2 Data)

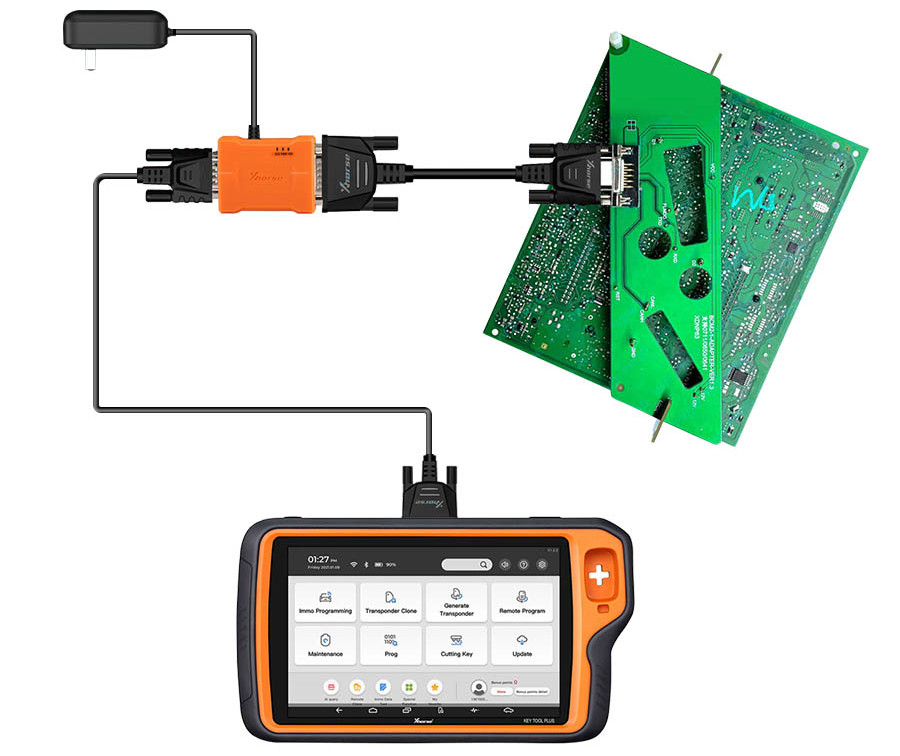

Connect the Device with VVDI Key Tool Plus Pad



Xhorse BCM2 Adapter FAQs:

Q. Does BCM2 Adapter support A6L all key lost?
A: A6L does not support currently. At present, it only supports A4L, A5, and Q5 all-lost-free data. A6L supports reading BCM2 all key lost. You need to find a third party to get the sync data.

Q. Does the adapter work with VVDI2?
A: Absolutely. Upgrade the software of VVDI2 to the latest version and then you are free to use the adapter. Please note that reading BCM2 data would require VVDI PROG.

Q. Does it support OBD way for A4L from 2013 to 2018 year?
A: No. The 2013-2018 year A4L needs to read BCM2 data through the Audi free soldering adapter, while the A4L before 2013 can obtain BCM2 data by OBD, and no need get data from third party.

Q. Can I read BCM2 data directly by wiring?
A: The solder-free adapter kit has 6 parts. Its core component is the orange BCM2 adapter. With this adapter, the BCM2 data can be read by soldering wires. In addition, in order to prevent welding damage to the BCM2 ECU, we strongly recommend that solder-free adapter.

Q. Is BCM2 easy to disassemble?
A: Usually, BCM2 module is beneath the protection pad of the car trunk. It can be easily spotted and levered to take out the PCB.

Q. Is there an fee when using BCM2 adapter? Will cost bonus points?
A: A: No update fee or fee to pay to Xhorse, but some car models need third party sync data, and no points will be deducted.

Q. Are there any special restrictions on the keys used?
A: You can use the 754J key currently on the market.

Q. Which tool could work with AUDI BCM2 adapter?
A: It's able to work with KEY TOOL PLUS or VVDI2 & VVDI PROG. Users can work with different tools according to what they have in hand.

Q. How much is the 3rd party service?
A: Currently, Xhorse does not cooperate with any 3rd party service. Users could contact the service provider themselves and ask for the purchase info.

Q. Can it work with VVDI2 too instead of Key Tool Plus Pad?
A: VVDI2 will also upgrade the software to support this function, while it has to work together with VVDI Prog for reading BCM2 data.

Q. Can I read BCM2 data directly by the solder-free adapters?
A: The Audi kit-free solder-free adapter kit consists of 6 parts. Its core component is the orange BCM2 adapter. As long as this adapter is available, the BCM2 data can be read by soldering wires, but the adapter is not currently sold separately. In addition, in order to prevent welding damage to the BCM2 computer, we strongly recommend that novices choose a solder-free adapter.

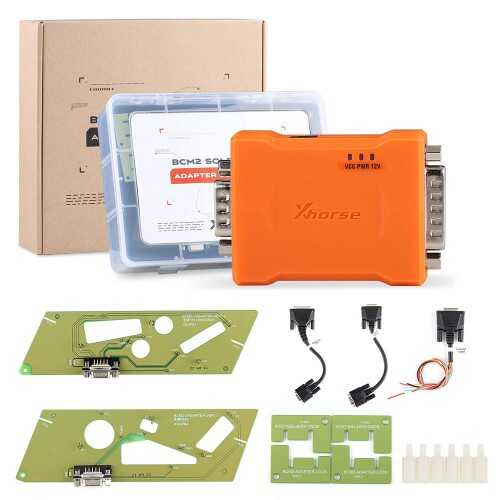

Package List:

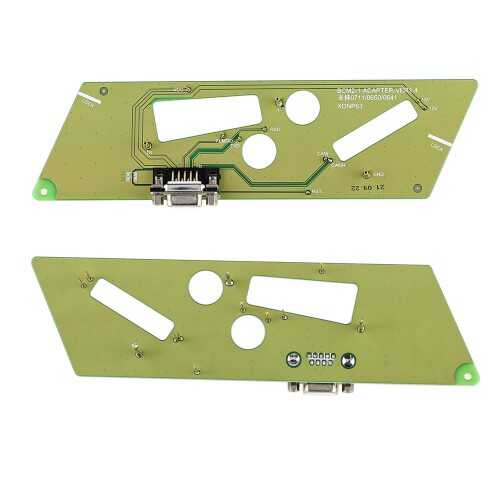

1 pc x XDN63 BCM-1 Solder free Adapter
1 pcs x XDN64 BCM-2 Solder free Adapter
1 pcs x XDN67 BCM2-PROG Cable
1 pcs x XDN66 BCM-A2 Cable
1 pcs x XDN65 BCM-A1 Cable

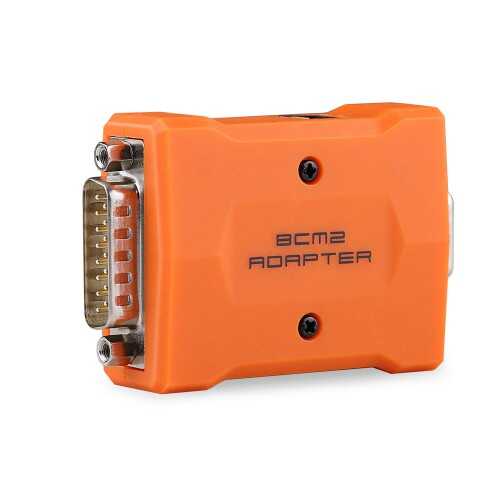

1 pcs x XDN62 BCM2 Adapter
