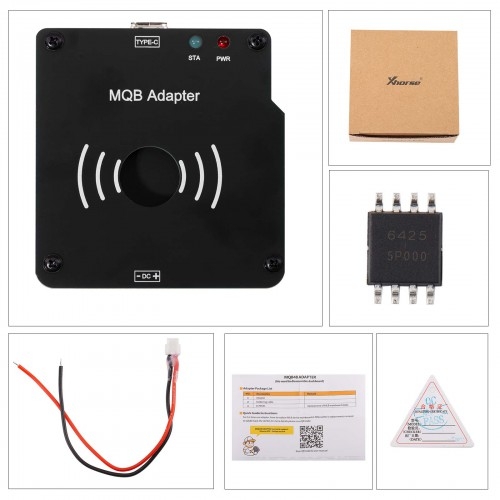

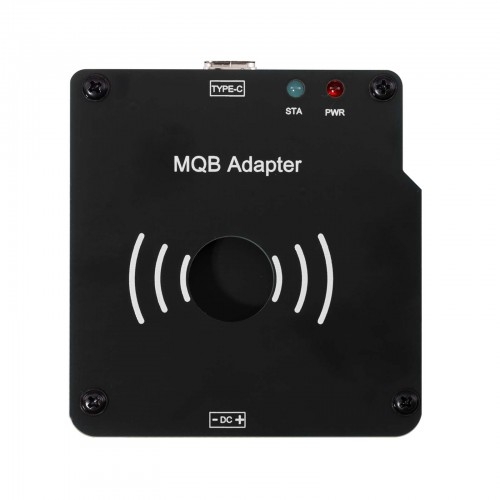

Product Introduction: XHORSE XDMQBAGL MQB Adapter, with MLB equipment, does not need to disassemble the instrument but only the key, and only needs to solder two wires. With low risk, simple operation, it can add keys for most MQB48 keys.
Product Features: No need to disassemble the instrument Easier to read key data and add keys
XDMQBAGL MQB Adapter Function: Similar to MLB, open the key, read data and program additional key. This new tool is for MQB48 Megamos AES. Read immo data (CS code) from mqb working key on the MQB48 platform so can add keys without take the cluster to read on bench.
MLB+MQB adapter instructions: Connect to VVDI2 device: 1. Use MLB device + MQB adapter to read IMMO data from MQB48 key. 2. Use VVDI2 to load the IMMO data read in the first step: generate key, learn key (VVDI2 needs to enable MQB function, does not need MQB48 NEC35XX locking function)
Connect to KEY TOOL PLUS / KEY TOOL MIDI device: 1. The tablet device is directly connected to MLB device + MQB adapter, and IMMO data can be read from MQB48 key. 2. The tablet device loads the IMMO data read in the first step: generate key, learn key (the tablet device needs to have fourth-generation authorization, does not need MQB48 NEC35XX locking function)
Notice: Recommended customers collect data on a computer instead of using a tablet/key tool plus.
How to connect MQB48 Adapter with MLB Tool?
MLB Main Unit Upgrade Chip: This chip is used to replace the original chip in the MLB main unit. After replacement, it will work with the information collector. Discard the original chip; no need to retain it.
